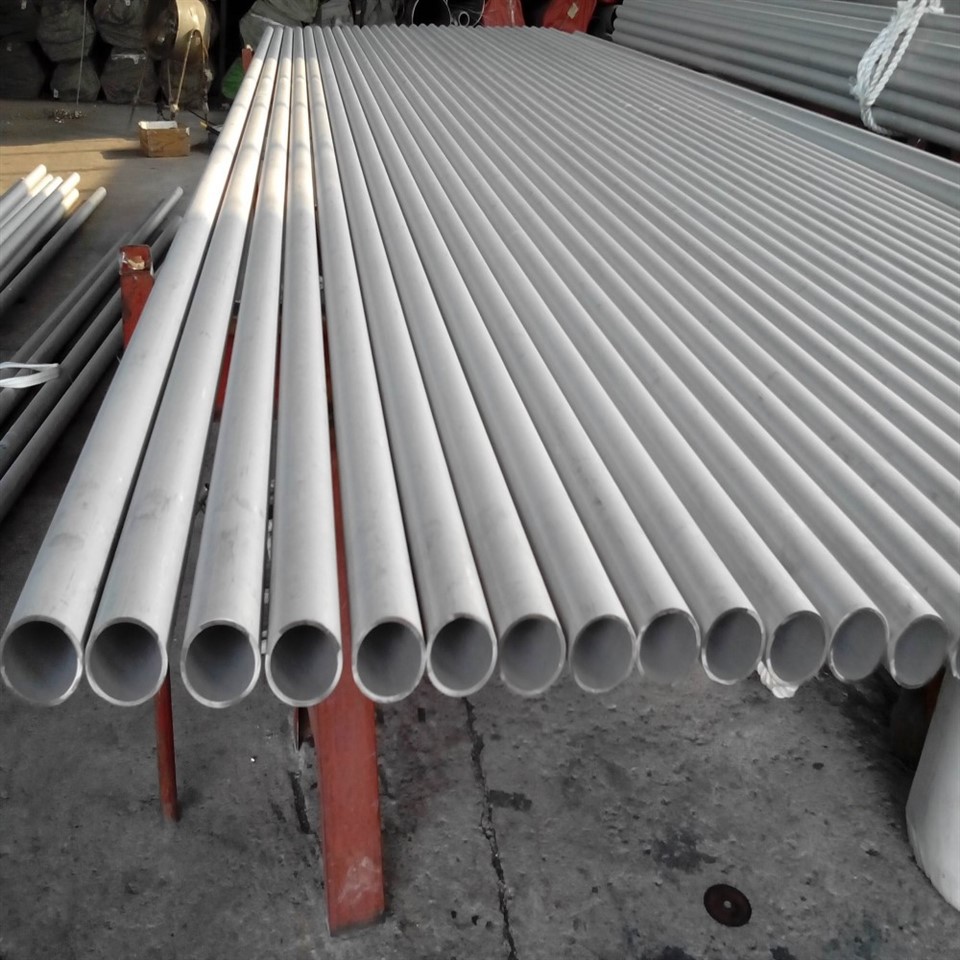

What is ASTM A312 TP316L Stainless Steel Pipe?
ASTM A312 TP316L stainless steel pipe is a low carbon molybdenum-bearing austenitic stainless steel pipe grade under ASTM A312 / ASME SA312 standard. The "L" in TP316L stands for Low Carbon (≤0.03%), which significantly improves weldability and reduces the risk of carbide precipitation during welding.
Compared with TP316, TP316L offers better corrosion resistance in welded zones, making it highly suitable for welded piping systems in aggressive environments such as marine, chemical processing, and pharmaceutical industries.
ASTM A312 TP316L Chemical Composition
| Element | Content (%) |
|---|---|
| Chromium (Cr) | 16.0 – 18.0 |
| Nickel (Ni) | 10.0 – 14.0 |
| Molybdenum (Mo) | 2.0 – 3.0 |
| Carbon (C) | ≤ 0.03 |
| Manganese (Mn) | ≤ 2.00 |
| Silicon (Si) | ≤ 1.00 |
| Phosphorus (P) | ≤ 0.045 |
| Sulfur (S) | ≤ 0.030 |
👉 Key Feature:
Ultra-low carbon improves weld integrity and corrosion resistance in welded areas.
Mechanical Properties of TP316L Stainless Steel Pipe
| Property | Value |
|---|---|
| Tensile Strength | ≥ 485 MPa |
| Yield Strength | ≥ 170 MPa |
| Elongation | ≥ 40% |
| Hardness | ≤ 217 HB |
TP316L Stainless Steel Pipe Size Chart
Outer Diameter (OD)
1/8" – 48"
Wall Thickness (Schedule)
SCH 5S / 10S / 40S / 80S / 160S
Length Options
6 meters standard
12 meters
Custom cut length
Types Available
Seamless pipe (SMLS)
Welded pipe (ERW / EFW)
Key Features of TP316L Stainless Steel Pipe
Excellent resistance to chloride corrosion
Superior welding performance (low carbon advantage)
High corrosion resistance in harsh environments
Suitable for chemical and marine applications
Long service life with low maintenance cost
Excellent forming and fabrication ability
ASTM A312 TP316L Applications
TP316L stainless steel pipe is widely used in:
Marine engineering systems
Offshore oil & gas platforms
Chemical processing plants
Pharmaceutical equipment
Food processing industry
Desalination plants
Heat exchangers
Pulp and paper industry
High-purity piping systems
TP304 vs TP316 vs TP316L Stainless Steel Pipe
| Feature | TP304 | TP316 | TP316L |
|---|---|---|---|
| Carbon Content | ≤0.08% | ≤0.08% | ≤0.03% |
| Molybdenum | No | Yes | Yes |
| Welding Performance | Good | Good | Best |
| Chloride Resistance | Low | High | High |
| Marine Use | Not recommended | Recommended | Recommended |
| Cost | Low | High | Medium-High |
👉 Key Insight:
TP316L is the best choice for welded systems in corrosive environments.
Manufacturing Standard & Quality Control
TP316L stainless steel pipes are manufactured under strict ASTM A312 requirements:
Spectrochemical material testing
Ultrasonic testing (UT)
Hydrostatic pressure testing
Eddy current testing (ECT)
Mechanical property testing
Dimensional inspection
Certifications:
ASTM A312
ASME SA312
ISO quality management system
Mill Test Certificate (MTC 3.1 available)
Inspection & Quality Assurance Products Description
Each TP316L pipe undergoes:
100% surface inspection
Heat number traceability
Third-party inspection (SGS / BV / TUV available)
End finishing inspection (bevel / thread / plain end)
Packaging & Delivery Standards
Steel strip bundled
Plastic end caps protection
Waterproof wrapping
Wooden box / steel frame export packing
Clear shipping marking
Delivery terms:
FOB / CIF / CFR available
Fast production lead time
Global export supply
Why Choose TP316L Stainless Steel Pipe?
Best welding performance among 300 series stainless steels
Excellent corrosion resistance in chloride environments
Ideal for marine and chemical industries
Reduced risk of intergranular corrosion
High reliability in critical applications
Globally recognized ASTM standard
FAQ
What is ASTM A312 TP316L stainless steel pipe?
It is a low carbon stainless steel pipe with molybdenum, offering excellent corrosion resistance and weldability.
What does the "L" in TP316L mean?
It means Low Carbon (≤0.03%), improving welding performance.
Is TP316L better than TP316?
Yes, especially in welded applications and corrosion-prone zones.
Can TP316L be used in seawater?
Yes, it is widely used in marine and seawater systems.
What industries use TP316L pipe?
Marine, chemical, pharmaceutical, food, and offshore industries.
