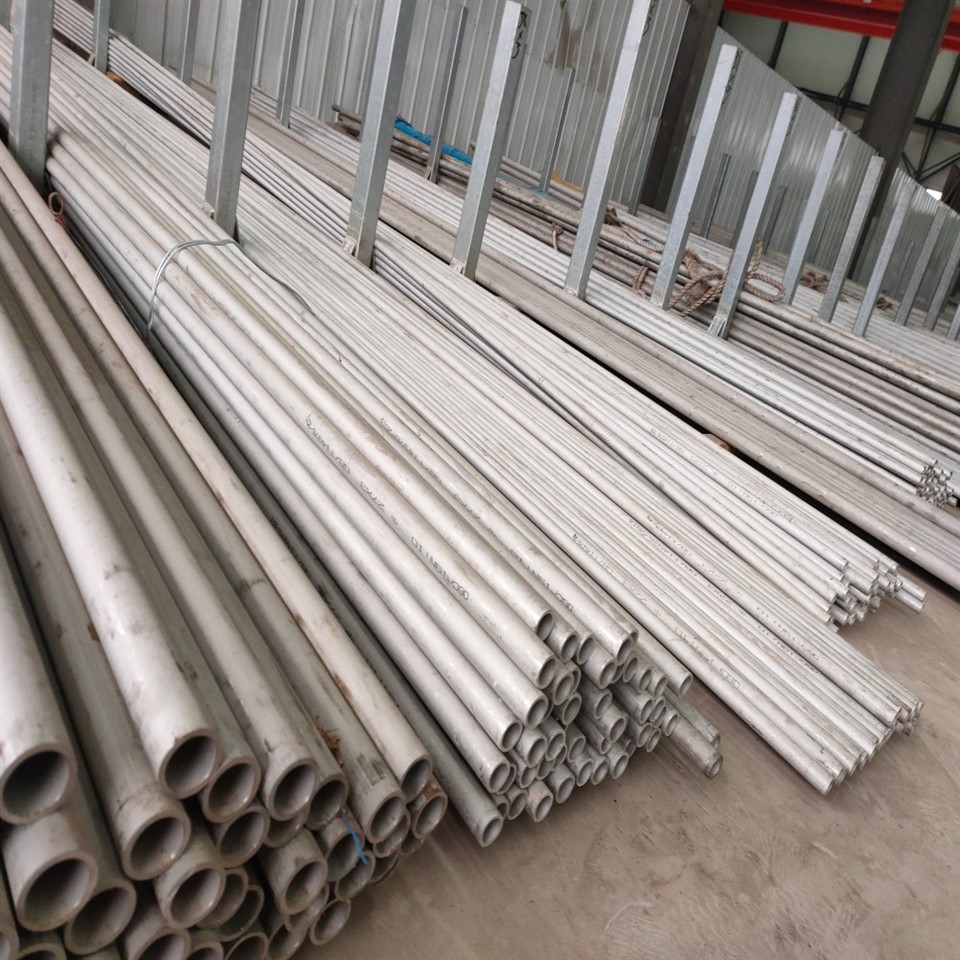

What is ASTM A312 TP316 Stainless Steel Pipe?
ASTM A312 TP316 stainless steel pipe is a molybdenum-containing austenitic stainless steel pipe grade widely used in highly corrosive environments. It is an upgraded version of TP304 stainless steel pipe, with added molybdenum (Mo 2–3%), which significantly improves resistance to chlorides, seawater, and chemical corrosion.
TP316 stainless steel pipe is manufactured under ASTM A312 / ASME SA312 standards and is available in both seamless and welded forms. It is widely used in marine engineering, chemical processing, pharmaceutical equipment, and offshore oil & gas industries.
ASTM A312 TP316 Chemical Composition
| Element | Content (%) |
|---|---|
| Chromium (Cr) | 16.0 – 18.0 |
| Nickel (Ni) | 10.0 – 14.0 |
| Molybdenum (Mo) | 2.0 – 3.0 |
| Carbon (C) | ≤ 0.08 |
| Manganese (Mn) | ≤ 2.00 |
| Silicon (Si) | ≤ 1.00 |
| Phosphorus (P) | ≤ 0.045 |
| Sulfur (S) | ≤ 0.030 |
👉 Key Feature:
Molybdenum (Mo) improves pitting and crevice corrosion resistance.
Mechanical Properties of TP316 Stainless Steel Pipe
| Property | Value |
|---|---|
| Tensile Strength | ≥ 515 MPa |
| Yield Strength | ≥ 205 MPa |
| Elongation | ≥ 40% |
| Hardness | ≤ 217 HB |
TP316 Stainless Steel Pipe Size Chart
Outer Diameter (OD)
1/8" to 48"
Wall Thickness (Schedule)
SCH 5S / SCH 10S / SCH 40S / SCH 80S / SCH 160S
Length Options
6 meters standard
12 meters
Custom cut length
Types Available
Seamless pipe (SMLS)
Welded pipe (ERW / EFW)
Key Features of TP316 Stainless Steel Pipe
Excellent resistance to chloride corrosion
Superior performance in marine environments
High strength and durability
Good weldability and formability
Long service life in harsh conditions
Suitable for hygienic and chemical applications
ASTM A312 TP316 Applications
TP316 stainless steel pipe is widely used in:
Marine engineering systems
Offshore oil & gas platforms
Chemical processing plants
Pharmaceutical industry equipment
Food processing (high hygiene requirement)
Heat exchangers
Desalination plants
Pulp and paper industry
TP304 vs TP316 Stainless Steel Pipe
| Feature | TP304 | TP316 |
|---|---|---|
| Molybdenum | No | Yes (2–3%) |
| Corrosion Resistance | Good | Excellent |
| Chloride Resistance | Low | High |
| Marine Use | Not recommended | Recommended |
| Cost | Lower | Higher |
👉 Conclusion:
TP316 is the preferred choice for aggressive environments involving seawater or chlorides.
Manufacturing Standard & Quality Control
TP316 stainless steel pipes are manufactured under strict ASTM A312 requirements:
Raw material spectro analysis
Ultrasonic testing (UT)
Hydrostatic pressure testing
Eddy current testing (ECT)
Mechanical property testing
Dimensional inspection
Certifications:
ASTM A312
ASME SA312
ISO quality system
Mill Test Certificate (MTC 3.1 available)
Inspection & Quality Assurance
Each TP316 pipe undergoes:
100% surface inspection
Heat number traceability
Third-party inspection (SGS / BV / TUV available)
End bevel and dimension check
Surface treatment inspection (pickled / polished / annealed)
Packaging & Delivery Standards
Steel strip bundled
Plastic end caps protection
Waterproof wrapping
Wooden box / steel frame export packing
Standard export marking
Delivery terms:
FOB / CIF / CFR available
Fast production lead time
Global export supply
Why Choose TP316 Stainless Steel Pipe?
Best corrosion resistance among common stainless steels
Ideal for marine and chemical environments
Long-term cost efficiency (less maintenance)
Global ASTM standard acceptance
High reliability in critical applications
FAQ
What is ASTM A312 TP316 stainless steel pipe?
It is a molybdenum-bearing stainless steel pipe with excellent corrosion resistance for marine and chemical environments.
What is the main advantage of TP316 over TP304?
TP316 contains molybdenum, giving much better resistance to chloride corrosion.
Can TP316 stainless steel pipe be used in seawater?
Yes, TP316 is widely used in seawater and marine applications.
Is TP316 better than TP304L?
Yes, in corrosive environments TP316 performs better due to Mo content.
What industries use TP316 stainless steel pipe?
Marine, chemical, pharmaceutical, oil & gas, and desalination industries.
