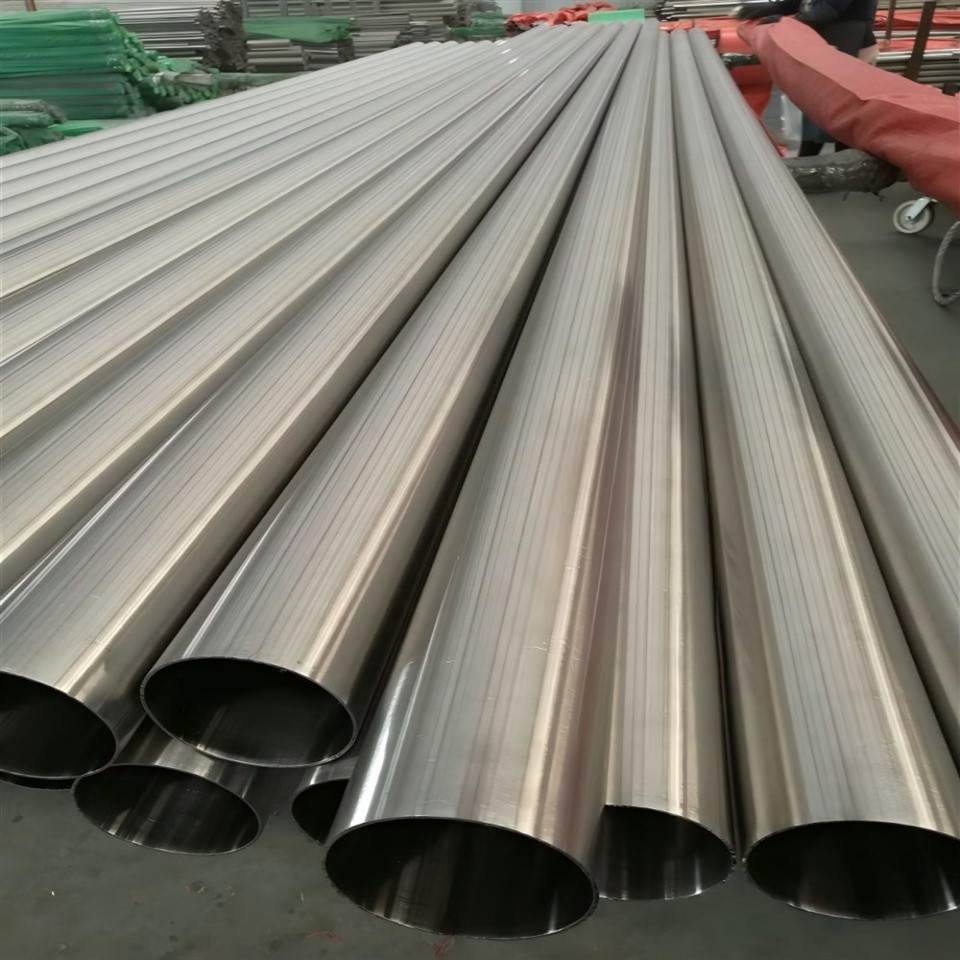

What is ASTM A312 TP321 Stainless Steel Pipe?
ASTM A312 TP321 stainless steel pipe is a titanium-stabilized austenitic stainless steel grade designed for high-temperature and corrosion-resistant applications. It is manufactured under ASTM A312 / ASME SA312 standards and is widely used in environments where temperatures exceed normal stainless steel operating limits.
The addition of titanium (Ti) stabilizes carbon, preventing carbide precipitation and improving resistance to intergranular corrosion, especially in high-temperature service conditions.
TP321 stainless steel pipe is commonly used in heat exchangers, exhaust systems, boilers, and high-temperature chemical processing equipment.
ASTM A312 TP321 Chemical Composition
| Element | Content (%) |
|---|---|
| Chromium (Cr) | 17.0 – 19.0 |
| Nickel (Ni) | 9.0 – 12.0 |
| Titanium (Ti) | ≥ 5 × C content |
| Carbon (C) | ≤ 0.08 |
| Manganese (Mn) | ≤ 2.00 |
| Silicon (Si) | ≤ 1.00 |
| Phosphorus (P) | ≤ 0.045 |
| Sulfur (S) | ≤ 0.030 |
👉 Key Feature:
Titanium stabilization improves resistance to high-temperature corrosion and sensitization.
Mechanical Properties of TP321 Stainless Steel Pipe
| Property | Value |
|---|---|
| Tensile Strength | ≥ 515 MPa |
| Yield Strength | ≥ 205 MPa |
| Elongation | ≥ 40% |
| Hardness | ≤ 217 HB |
TP321 Stainless Steel Pipe Size Chart
Outer Diameter (OD)
1/8" – 48"
Wall Thickness (Schedule)
SCH 5S / 10S / 40S / 80S / 160S
Length Options
6 meters standard
12 meters
Custom cut length
Types Available
Seamless pipe (SMLS)
Welded pipe (ERW / EFW)
Key Features of TP321 Stainless Steel Pipe
Excellent high-temperature resistance
Titanium stabilized against carbide precipitation
Good corrosion resistance
Suitable for continuous elevated temperature service
Excellent mechanical strength
Long service life in thermal environments
ASTM A312 TP321 Applications
TP321 stainless steel pipe is widely used in:
Heat exchangers
Boiler systems
Exhaust manifolds
Chemical processing plants
High-temperature pipelines
Power generation systems
Aircraft engine components
Refineries and petrochemical plants
TP321 vs TP304 vs TP316 Stainless Steel Pipe
| Feature | TP304 | TP316 | TP321 |
|---|---|---|---|
| Stabilization | No | No | Titanium (Ti) |
| High Temperature Resistance | Medium | Medium | High |
| Corrosion Resistance | Good | Excellent | Good–High |
| Chloride Resistance | Low | High | Medium |
| Main Advantage | Cost-effective | Marine resistance | High-temperature stability |
👉 Key Insight:
TP321 is the best choice for high-temperature applications rather than chloride-heavy environments.
Manufacturing Standard & Quality Control
TP321 stainless steel pipes are produced under strict ASTM A312 requirements:
Raw material spectro analysis
Titanium content verification
Ultrasonic testing (UT)
Hydrostatic pressure testing
Eddy current testing (ECT)
Mechanical performance testing
Dimensional inspection
Certifications:
ASTM A312
ASME SA312
ISO quality management system
Mill Test Certificate (MTC 3.1 available)
Inspection & Quality Assurance
Each TP321 pipe undergoes:
100% surface inspection
Heat number traceability
Third-party inspection (SGS / BV / TUV available)
End finish inspection (bevel / thread / plain end)
Packaging & Delivery Standards
Steel strip bundled
Plastic end caps protection
Waterproof wrapping
Wooden box / steel frame export packing
Clear shipping marking
Delivery terms:
FOB / CIF / CFR available
Fast production lead time
Global export supply
Why Choose TP321 Stainless Steel Pipe?
Best choice for high-temperature environments
Titanium stabilized structure improves durability
Prevents intergranular corrosion
Reliable performance under thermal stress
Widely used in industrial heat systems
International ASTM recognized material
FAQ
What is ASTM A312 TP321 stainless steel pipe?
It is a titanium-stabilized stainless steel pipe designed for high-temperature applications.
What is the advantage of TP321 over TP304?
TP321 performs better at high temperatures due to titanium stabilization.
Is TP321 suitable for seawater?
It is not the best choice; TP316 is better for marine environments.
What is TP321 used for?
Heat exchangers, boilers, exhaust systems, and high-temperature pipelines.
Why is titanium added in TP321?
To prevent carbide precipitation and improve high-temperature stability.
