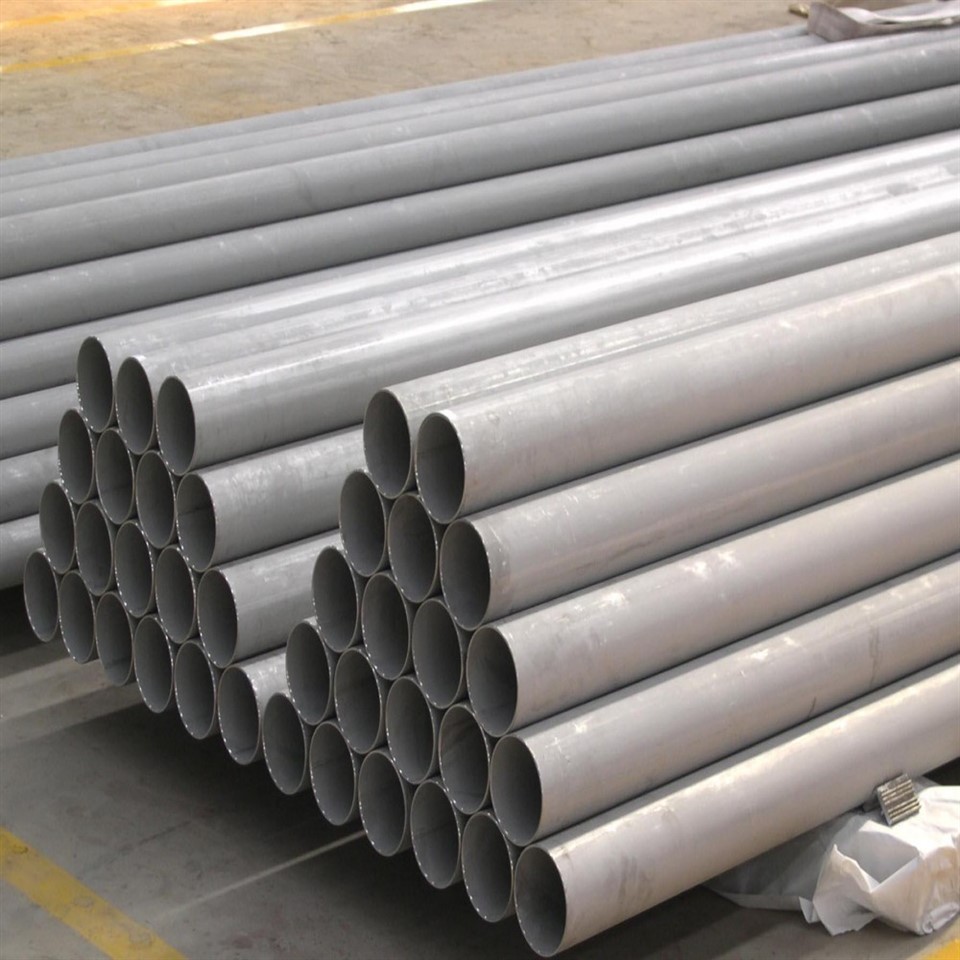

What is ASTM A312 TP304L Stainless Steel Pipe?
ASTM A312 TP304L stainless steel pipe is a low carbon version of TP304 stainless steel pipe, manufactured under ASTM A312 / ASME SA312 standards. The "L" in 304L stands for Low Carbon, which reduces carbon content to ≤0.03%, significantly improving welding performance and reducing the risk of carbide precipitation during welding.
TP304L stainless steel pipe offers excellent corrosion resistance, good mechanical strength, and superior weldability, making it widely used in welded piping systems, chemical industries, and pressure applications.
ASTM A312 TP304L Chemical Composition
| Element | Content (%) |
|---|---|
| Chromium (Cr) | 18.0 – 20.0 |
| Nickel (Ni) | 8.0 – 12.0 |
| Carbon (C) | ≤ 0.03 |
| Manganese (Mn) | ≤ 2.00 |
| Silicon (Si) | ≤ 1.00 |
| Phosphorus (P) | ≤ 0.045 |
| Sulfur (S) | ≤ 0.030 |
👉 Key Advantage:
Ultra-low carbon content improves welding stability and corrosion resistance in welded zones.
Mechanical Properties of TP304L Stainless Steel Pipe
| Property | Value |
|---|---|
| Tensile Strength | ≥ 485 MPa |
| Yield Strength | ≥ 170 MPa |
| Elongation | ≥ 40% |
| Hardness | ≤ 201 HB |
TP304L Stainless Steel Pipe Size Chart
Outer Diameter (OD)
1/8" – 48"
Wall Thickness (Schedule)
SCH 5S / 10S / 40S / 80S / 160S
Length
6 meters standard
12 meters
Custom cut length
Type
Seamless pipe (SMLS)
Welded pipe (ERW / EFW)
Key Features of TP304L Stainless Steel Pipe
Excellent welding performance
Reduced carbide precipitation risk
Good corrosion resistance
Suitable for high-temperature welding systems
Long service life
Cost-effective stainless steel solution
Applications of ASTM A312 TP304L Pipe
TP304L stainless steel pipe is widely used in:
Chemical processing plants
Welded piping systems
Pressure vessels
Food and beverage industry
Pharmaceutical equipment
Heat exchangers
Water treatment systems
Industrial fluid transport
TP304 vs TP304L Stainless Steel Pipe
| Feature | TP304 | TP304L |
|---|---|---|
| Carbon Content | ≤0.08% | ≤0.03% |
| Welding Performance | Good | Excellent |
| Corrosion Resistance | Good | Better (weld zone) |
| Application | General use | Welded systems |
| Cost | Medium | Medium |
👉 Key Insight:
TP304L is preferred when welding is involved or when corrosion resistance at weld joints is critical.
Manufacturing Standard & Quality Control
TP304L pipes are manufactured under strict ASTM A312 requirements:
Raw material spectro analysis
Ultrasonic testing (UT)
Hydrostatic pressure testing
Eddy current testing (ECT)
Mechanical property testing
Dimensional inspection
Certifications:
ASTM A312
ASME SA312
ISO quality system
Mill Test Certificate (MTC 3.1 available)
Inspection & Quality Assurance
Each TP304L pipe undergoes:
100% surface inspection
Heat number traceability
Third-party inspection (SGS / BV / TUV available)
End finishing inspection (bevel / thread / plain end)
Packaging & Delivery Standards
Steel strip bundled
Plastic end caps protection
Waterproof wrapping
Wooden box / steel frame export packing
Clear shipping marking
Delivery terms:
FOB / CIF / CFR available
Fast production lead time
Global export supply
Why Choose TP304L Stainless Steel Pipe?
Best welding performance in 300 series stainless steel
Reduced corrosion risk in welded areas
Widely accepted ASTM standard
Cost-effective alternative to higher alloy grades
Suitable for global industrial applications
FAQ
What is ASTM A312 TP304L stainless steel pipe?
It is a low carbon stainless steel pipe with excellent weldability and corrosion resistance.
What does the "L" in TP304L mean?
It means "Low Carbon", with carbon content ≤0.03%.
Is TP304L better than TP304?
For welding applications, yes. TP304L performs better at weld joints.
Can TP304L be used in pressure systems?
Yes, it is widely used in pressure piping systems.
What industries use TP304L pipe?
Chemical, food, pharmaceutical, water treatment, and industrial piping systems.
