How Strong Is 2mm Aluminium Checker Plate?

A 2mm aluminium checker plate does not have one universal safe load. Two sheets with the same nominal thickness can perform very differently because capacity and deflection depend on alloy, temper, clear support span, edge restraint, panel width, load distribution, contact area, connections, fatigue and the required safety margin.

In practical terms, 2mm checker plate is commonly considered for wall protection, toolboxes, enclosures, equipment covers, vehicle lining and other light fabrication. It may also act as a walking-surface skin when it is continuously backed or supported by a properly designed frame. It should not be approved as a free-spanning stair tread, platform, ramp or load-bearing floor from thickness alone.

Quick answer
Use 2 mm as a product thickness, not as a load rating. For any pedestrian, vehicle, machinery or access-cover application, ask a qualified designer to check the complete panel-and-support system. A material supplier can confirm alloy, temper, dimensions, processing and inspection requirements, but the project designer must approve structural capacity.

When sourcing 2mm aluminium checker plate, buyers often assume thickness alone determines strength.

In reality, strength depends on a combination of:

Alloy type (3003, 5052, 6061)

Temper condition (H22, H32, T6)

Support spacing (critical factor)

Load type (static vs dynamic)

👉 That's why two 2mm checker plates can perform completely differently in real-world applications.

This guide gives you a complete, practical understanding of strength, load capacity, and application limits-based on real industry usage.

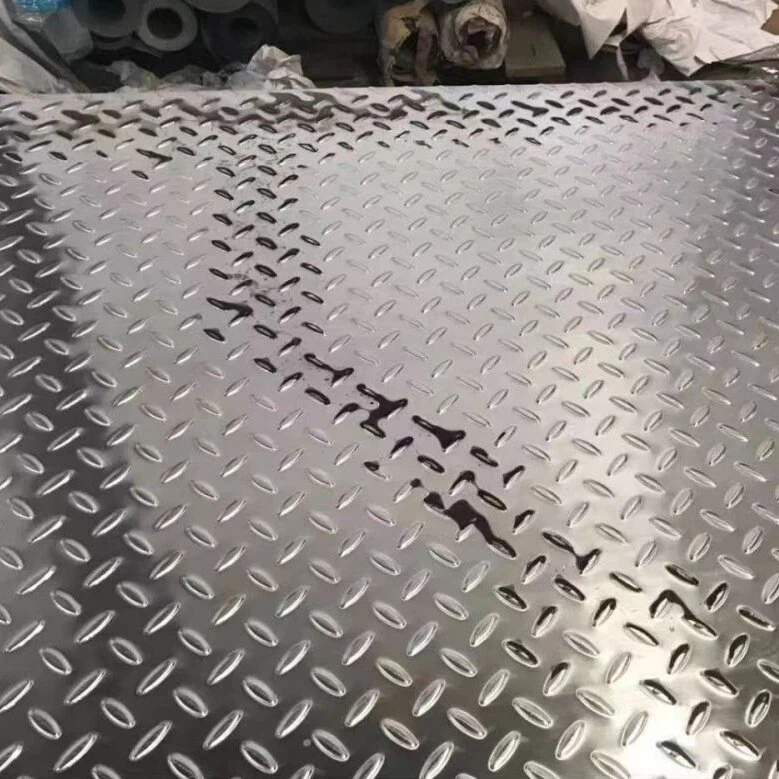

A 2mm aluminium checker plate (also called tread plate or diamond plate) is an aluminum sheet with a raised surface pattern designed for:

Anti-slip performance

Improved rigidity

Decorative appearance

Standard Structure:

Base thickness: 2.0mm

Pattern height: 0.5–1.0mm

Total thickness: ~2.5–3.0mm

👉 Important:
The checker pattern improves stiffness slightly, but does NOT significantly increase load-bearing strength.

The purchase specification should state whether 2.0 mm refers to the base thickness or the overall thickness measured over the raised pattern. For engineering and weight calculations, base thickness is normally the critical dimension. Overall thickness varies with pattern geometry and mill tooling.

A clear purchase description is: 2.0 mm nominal base thickness, excluding the raised tread pattern.

Approximate Weight of 2mm Aluminium Checker Plate

Using an aluminium density of approximately 2,700 kg/m³, a flat 2.0 mm base sheet weighs about 5.40 kg/m² before any tread-pattern allowance:

Base mass (kg) = width (m) × length (m) × base thickness (mm) × 2.70

Actual shipping weight is higher because the raised pattern contains additional metal. Alloy density, pattern geometry and dimensional tolerance also affect final mass. Use the confirmed unit weight on the quotation and packing list for freight planning.

Alloy selection should balance strength, corrosion exposure, forming, welding, appearance, availability and the governing product standard. The following is a procurement guide, not a load rating. Confirm the final alloy-temper combination and mechanical requirements on the purchase order and MTC.

A surface diamond pattern (typically 3-5mm squares) enhances performance by:

Bending rigidity: increase the moment of inertia of the plate surface and reduce the deflection deformation.
Slip resistance: The diamond-shaped protrusion improves friction and is suitable for stairs, platforms, etc.
Lightweight: 30-40% weight reduction compared to solid slabs, but maintaining structural strength.

At equal base thickness, aluminium provides a major mass saving but is not a one-for-one stiffness replacement for steel. A 2mm aluminium base sheet weighs about 5.4 kg/m², while a 2mm carbon-steel base sheet is approximately 15.7 kg/m² using typical densities. Aluminium's elastic modulus is also much lower, so an equal-thickness panel generally deflects more under comparable geometry and loading.

Static loads (e.g. floors, treads):
The maximum safe load of the 2 mm aluminum sheet is about 15-30 kg/m² (depending on the alloy type and support spacing) under a homogeneous load distribution.

Concentrated loads (e.g. pedaling points): Approx. 50-100 kg at a single point (need to avoid long-term local pressure).

Dynamic load (e.g., vehicle floor): fatigue strength needs to be considered, and high-strength alloys such as 6061-T6 are recommended.

ASTM B632/B632M-24 is the active ASTM specification for rolled, mill-finish aluminium-alloy tread plate with a raised pattern on one side, within the alloy, temper and thickness combinations listed by the standard. BS EN 1386:2007 is the current British adoption of the European tread plate specification. The purchase order should confirm which standard and edition apply.

The order specification should state:

alloy and temper

applicable standard and edition

nominal base thickness and any required overall thickness

pattern type, height and direction

width, length, diagonal tolerance and flatness

surface finish and protective film

cutting, bending, drilling or other processing

mechanical properties or project-specific acceptance criteria

MTC or inspection certificate requirements

dimensional report and agreed third-party inspection, if required

Do not assume that every commercially available alloy-temper-pattern combination is covered by the same standard. Where an option falls outside a standard table, define the material, tread geometry, tolerances, tests and acceptance criteria contractually.

Xi'an Dongmeng Group Co., Ltd. can review enquiries for aluminium checker plate in selected alloys, tempers, patterns and cut sizes. Depending on the confirmed order specification, supply options may include one-bar, multi-bar, diamond or lentil patterns; cut-to-size processing; bending or drilling review; protective film; dimensional and surface inspection; MTC; agreed third-party inspection; and export packing.

For load-bearing applications, our review covers material specification, manufacturability, inspection and supply requirements. Final panel thickness, framing, connections and code compliance must be approved by the responsible project engineer.

How To Cooperate With Us?

High-quality aluminum is used as raw material to ensure the purity and quality of the products. During the production process, advanced techniques and technologies are employed to guarantee the clarity and uniformity of the patterns.

Our address

Room 4107, Runfeng Building, Sanqiao New Street, Weiyang District, Xi'an City, Shaanxi Province

Phone Number

+86 15769214734

E-mail

office@dongmjd.com

Is 2mm aluminium checker plate strong enough to walk on?

It can be used as a walking-surface skin when the complete backing or support system is suitable and verified. It should not be treated as a free-spanning pedestrian plate solely because it is 2 mm thick.

What is the load capacity of 2mm aluminium checker plate?

There is no universal value. Capacity depends on alloy, temper, panel size, clear span, supported edges, fixings, load type, contact area, deflection limit, safety factor and the applicable design code.

Does 2 mm include the raised pattern?

Not necessarily. Buyers should specify 2.0 mm base thickness excluding the pattern and separately confirm the overall thickness over the raised bars.

How much does 2mm aluminium checker plate weigh?

The calculated flat-base weight is approximately 5.40 kg/m² using a density of 2,700 kg/m³. Actual tread plate weighs more because of the raised pattern and varies by alloy and production tolerance.

Is 5052 stronger than 3003 checker plate?

In commonly supplied strain-hardened tempers, 5052 generally provides higher strength and stronger corrosion performance than 3003. Final selection must still consider temper, bend requirements, welding, environment and the governing standard.

Will 6061-T6 stop a 2mm panel from flexing?

Not necessarily. 6061-T6 can provide higher yield strength, but common aluminium alloys have similar elastic modulus. Thickness and support spacing usually have a much greater effect on elastic deflection.

Is aluminium checker plate slip-proof?

No. Raised profiles can improve traction in some conditions, but water, oil, dust, footwear, wear and slope affect performance. Specify and test slip resistance for safety-critical use.

Which standard applies to aluminium tread plate?

ASTM B632/B632M-24 covers specified rolled tread plate combinations, while BS EN 1386:2007 is a current European tread plate specification. Confirm the exact standard, alloy, temper and thickness scope in the order.

Can 2mm checker plate be cut and bent?

Yes, subject to alloy, temper, bend radius, pattern direction, tooling and drawing review. Holes, bends and cutouts should be included in the RFQ.

What should I send for a quotation?

Send the alloy or service environment, standard, base thickness, pattern, sheet size, quantity, drawing, support spacing, load information, processing, inspection, packing and destination port.
