ASTM B444 / B444M is the standard specification for "Nickel-Chromium-Molybdenum-Columbium Alloys (UNS N06625 and UNS N06852) and Nickel-Chromium-Molybdenum-Silicon Alloy (UNS N06219) Plate, Sheet, and Strip".
It's important to clarify a key point upfront: ASTM B444 itself does not directly cover pipe. It is a standard for flat-rolled products (plate, sheet, strip). However, seamless pipe made from these specific alloys is commonly manufactured to other ASTM standards that reference the chemical and mechanical property requirements of B444.
The most common standard for seamless pipe from these alloys is ASTM B444 / ASME SB444 in conjunction with ASTM B829, which specifies the general requirements for nickel-alloy seamless pipe. The pipe would be certified to meet the chemical and mechanical properties defined in B444.
Professional team
7x24 hours delivery
UNS N06625 (NiCrMoNb) and UNS N06219 (NiCrMoSi)
These are two of the most important high-performance nickel-based alloys, known for exceptional strength and corrosion resistance across a wide temperature range.
| Feature | UNS N06625 (NiCrMoNb Alloy) | UNS N06219 (NiCrMoSi Alloy) |
|---|---|---|
| Common Name | Alloy 625 (Werkstoff Nr. 2.4856) | Alloy 625 LCF or Hastelloy® G-35 (Note: G-35 is a specific, closely related variant) |
| Key Composition | ~58% Ni, 22% Cr, 9% Mo, 3.5% Nb+Ta | ~58% Ni, 22% Cr, 8% Mo, ~0.4% Si, Low Iron (<2%) |
| Key Additions | Niobium (Nb) | Silicon (Si) & Controlled Low Iron |
| PREN | ~50 | ~48 |
| Strengthening Mechanism | Solution Strengthening & Precipitation Hardening from Niobium. Can be age-hardened. | Primarily Solid Solution Strengthening. Not age-hardenable. |
| Primary Advantage | Outstanding strength and toughness from cryogenic temperatures to 1800°F (1000°C). Excellent fatigue resistance. | Superior corrosion resistance in highly oxidizing and mixed acid environments, especially where chlorides are present. |
| Key Characteristics | Excellent resistance to pitting, crevice corrosion, and oxidation. Renowned for its high fatigue strength. | Excellent resistance to hot sulfuric acid, nitric acid, and corrosive waste waters. Superior to N06625 in some oxidizing media. |
ASTM B444 / B444M room temperature tensile properties and heat treatment

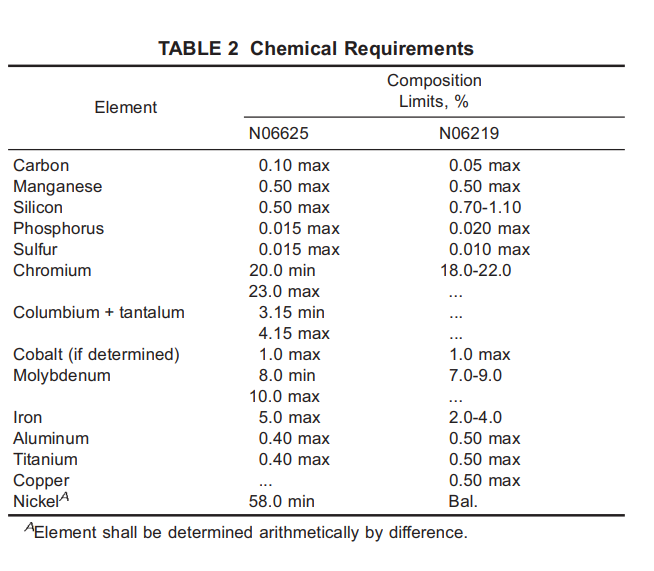

ASTM B444 / B444M UNS N06625 (NiCrMoNb) and UNS N06219 (NiCrMoSi) chemical requirements

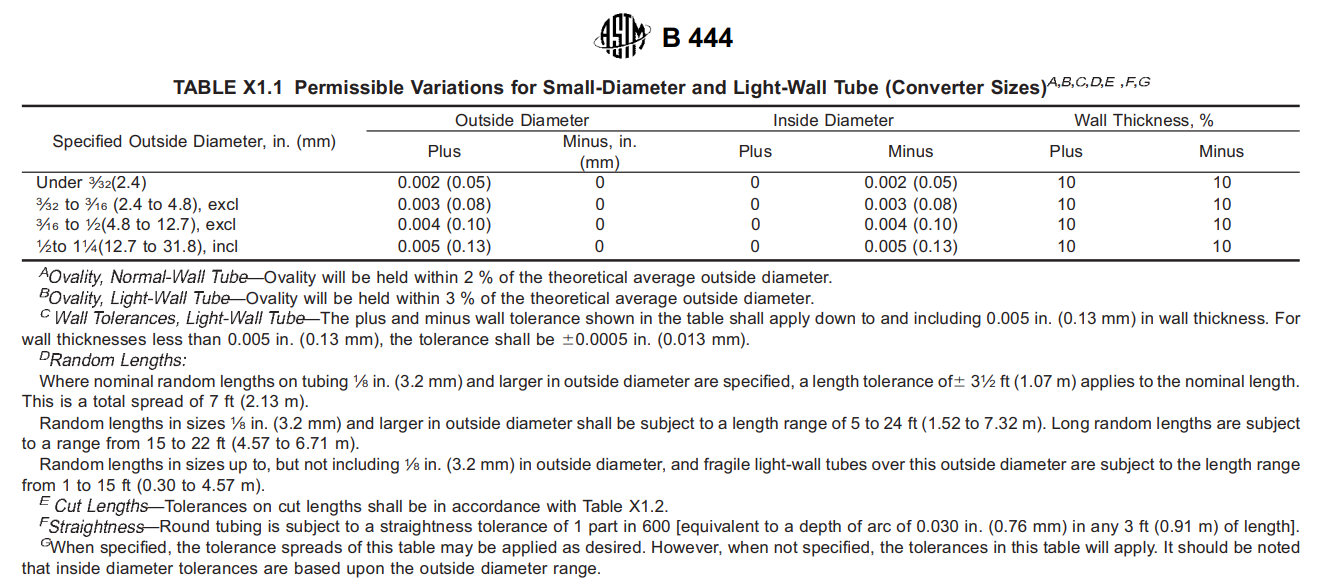

ASTM B444 / B444M UNS N06625 (NiCrMoNb) and UNS N06219 (NiCrMoSi) permissible variations

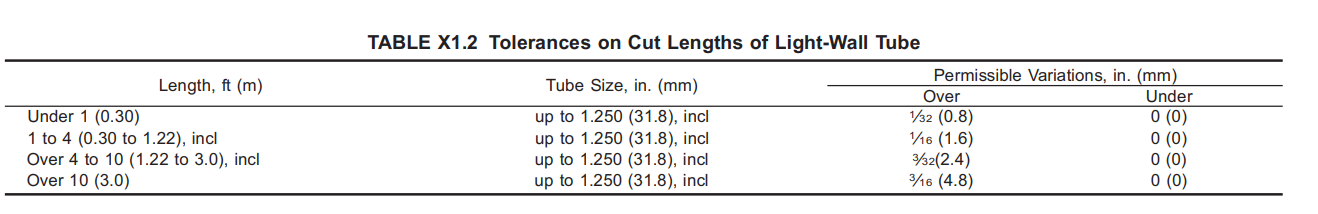

ASTM B444 / B444M UNS N06625 (NiCrMoNb) and UNS N06219 (NiCrMoSi) tolerances
Detailed Alloy Breakdown
1. UNS N06625 (Alloy 625) - The Versatile Workhorse
This is one of the most widely used nickel-based alloys due to its unique combination of properties.
The Role of Niobium (Nb): Niobium acts with the molybdenum to provide dramatic solution strengthening.
Corrosion Resistance:
Excellent resistance to pitting and crevice corrosion in chloride ions.
Highly resistant to a wide range of acids, alkalis, and salts.
Outstanding oxidation resistance at high temperatures.
Mechanical Properties:
Maintains high strength and toughness from cryogenic temperatures up to high temperatures.
Its fatigue strength is among the highest of all wrought alloys.
Common Applications for Pipe:
Aerospace: Engine exhaust systems, thrust reversers.
Marine & Offshore: Seawater piping, submarine components.
Oil & Gas: Downhole and surface equipment, choke and kill lines, umbilicals.
Chemical Processing: Reactors, heat exchangers, piping for aggressive chemicals.
Nuclear Industry: Core components, control rod ducting.
2. UNS N06219 (Alloy 625 LCF / G-35) - The Corrosion Specialist
This alloy is a modification of Alloy 625, optimized for specific corrosive environments.
The Role of Silicon (Si) and Low Iron: The controlled silicon content significantly improves resistance to sulfuric acid and other oxidizing acids. The low iron content is crucial for resistance to hydrochloric acid and chloride stress corrosion cracking.
Corrosion Resistance:
Superior to N06625 in hot sulfuric acid solutions.
Excellent resistance to nitric, phosphoric, and hydrofluoric acids.
Exceptional resistance to oxidizing chloride salts and corrosive waste waters.
Common Applications for Pipe:
Chemical Processing: Piping and heat exchangers for sulfuric acid anodizing, pickling, and acid recovery systems.
Pollution Control: Scrubbers and ducting handling mixed acid vapors.
Metal Finishing: Equipment for plating and surface treatment baths.
Pharmaceutical Industry: High-purity chemical handling
