ASTM B280 Air Conditioning & Refrigeration Copper Tube
Delivery date: 7-20 business days
Contact us: office@dongmjd.com
Free samples: available
Customized service: provided
Certification: SGS ASTM B280
Description
Looking for a Reliable Manufacturer for ASTM B280 Certified Copper Tubes? Your Search Ends Here.
why choose us
why choose our products
Choose Xi'an Dongmeng Steel with confidence. We are a verified supplier specializing in high-quality ASTM B280 ACR (Air Conditioning and Refrigeration) copper tubes, manufactured to the highest industry standards.
Our commitment to quality is demonstrated by our ISO 9001 certified manufacturing processes and independent verification from SGS Group, ensuring every product meets rigorous performance specifications.
We welcome factory audits and third-party inspections to provide you with complete transparency and peace of mind throughout the procurement process.
Contact us today to discuss your requirements or to schedule a visit to our facilities.
ASTM B280 is the definitive standard for seamless copper tubing specifically designed for air conditioning and refrigeration (ACR) applications. This oxygen-free, nitrogen-charged copper tube is meticulously manufactured to be clean, dry, and capped to prevent contamination, ensuring the integrity and longevity of sensitive HVACR systems. Unlike standard water tube, ACR pipe is delivered ready for field service, offering superior brazability and corrosion resistance for critical refrigerant lines, HVAC line sets, and chiller systems. When failure is not an option, specify ASTM B280 for guaranteed performance and protection against costly compressor burnouts and system contamination.
This specification covers the requirements for seamless UNS C10200, C12000, or C12200 copper alloy tubes used for connection, repairs, or alternations of field air conditioning or refrigeration units. Materials in the form of billets, bars, or tubes should be used to produce a homogeneous uniform wrought structure by either hot or cold working. Each tube should be cold drawn to the finished size and wall thickness. Coiled lengths with soft annealed tempers should be bright annealed after coiling then dehydrated and either capped, plugged, crimped, or otherwise closed at both ends. Straight lengths with hard drawn tempers should be cleaned and either capped, plugged, or otherwise closed at both ends. The grain sizes, tensile properties, and eddy-current and cleanness test results should conform to the values listed herein.
ASTM B280 Copper Tube for Air Conditioning and Refrigeration (ACR) - Dimensions
| Nominal Size (inches) |
Annealed (A) or Drawn Temper (D) | Outside Diameter (inches) mm |
Inside Diameter (inches) mm |
Wall Thickness (inches) mm |
Cross Sectional Area of Bore (square inches) mm |
|---|---|---|---|---|---|
| 1/8 | A | 0.125 | 0.065 | 0.030 | 0.0033 |
| 3/16 | A | 0.187 | 0.128 | 0.030 | 0.0129 |
| 1/4 | A | 0.250 | 0.190 | 0.030 | 0.0284 |
| 5/16 | A | 0.312 | 0.248 | 0.032 | 0.0483 |
| 3/8 | A | 0.375 | 0.311 | 0.032 | 0.076 |
| D | 0.375 | 0.315 | 0.030 | 0.078 | |
| 1/2 | A | 0.500 | 0.436 | 0.032 | 0.149 |
| D | 0.500 | 0.430 | 0.035 | 0.145 | |
| 5/8 | A | 0.625 | 0.555 | 0.035 | 0.242 |
| D | 0.625 | 0.545 | 0.040 | 0.233 | |
| 3/4 | A | 0.750 | 0.680 | 0.035 | 0.363 |
| A | 0.750 | 0.666 | 0.042 | 0.348 | |
| D | 0.750 | 0.666 | 0.042 | 0.348 | |
| 7/8 | A | 0.875 | 0.785 | 0.045 | 0.484 |
| D | 0.875 | 0.785 | 0.045 | 0.484 | |
| 1 1/8 | A | 1.125 | 1.025 | 0.050 | 0.825 |
| D | 1.125 | 1.025 | 0.050 | 0.825 | |
| 1 3/8 | A | 1.375 | 1.265 | 0.055 | 1.26 |
| D | 1.375 | 1.265 | 0.055 | 1.26 |
ASTM B280 Copper Tube for Air Conditioning and Refrigeration (ACR) - Working Pressures
| Nominal Size (inches) |
Max. Working Pressure (psi) (kPa) | ||
|---|---|---|---|
| Annealed Coils | Annealed Straight Lengths | Drawn Straight Lengths | |
| 1/8 | 2613 | ||
| 3/16 | 1645 | ||
| 1/4 | 1195 | ||
| 5/19 | 1017 | ||
| 3/8 | 836 | 777 | 1524 |
| 1/2 | 618 | 664 | 1302 |
| 5/8 | 525 | 615 | 1206 |
| 3/4 | 435 | 538 | 1055 |
| 7/8 | 495 | 496 | 972 |
| 1 1/8 | 420 | 421 | 825 |
| 1 3/8 | 373 | 374 | 733 |
| 1 5/8 | 347 | 348 | 682 |
| 2 1/8 | 309 | 607 | |
| 2 5/8 | 286 | 560 | |
| 3 1/8 | 270 | 529 | |
| 3 5/8 | 258 | 506 | |
| 4 1/8 | 249 | 489 | |
Ratings based on service temperature max. 150oF (66oC).
yield strength S = 5100 psi (35 GPa) for annealed tube
yield strength S = 10000 psi (69GPa) for drawn tube
Copper UNS No. Type of Copper：
| C10200 | Oxygen-free without residual deoxidants |
| C12000 | Phosphorus deoxidized, low residual phosphorus |
| C12200 | Phosphorus deoxidized, high residual phosphorus |

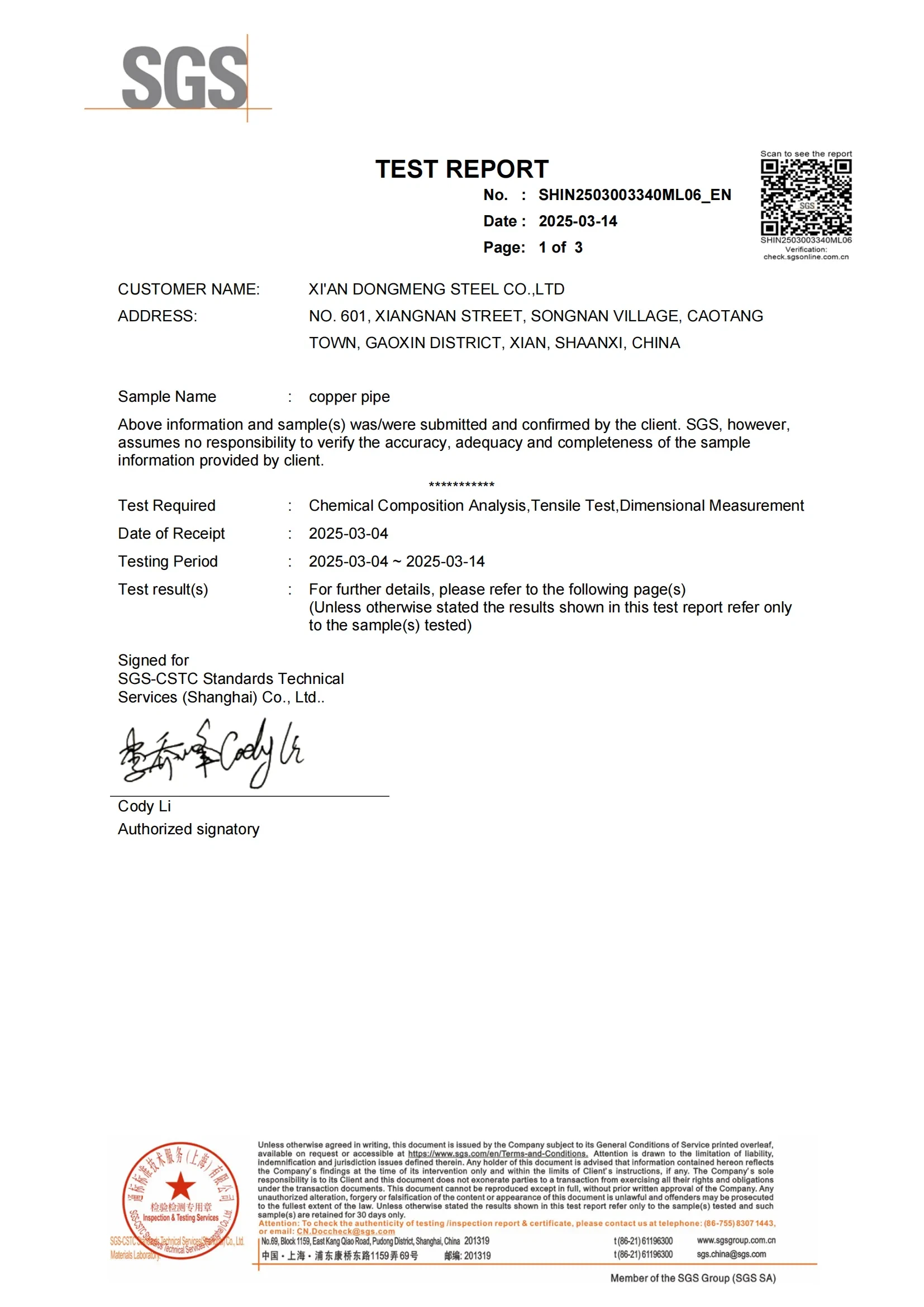

our certificate ASTM B280
Our air conditioning copper tubing is tested by SGS laboratories. Our customers typically request the following:
Laboratory measurements: OD and wall thickness (tested according to ASTM B280)
Test element: Cu, P (tested according to ASTM B280)
Tensile strength, yield strength, and elongation (tested according to ASTM B280)
Our Certificate ASTM B280
| Copper Tube soft temper | 1/2" × 0.035" × 49.21 ft |
| 12.7mm*0.9mm*15m |
Our Certificate ASTM B280
| Copper Tube soft temper | 3/4" × 0.059" × 19.0 ft |
| 19.05 mm × 1.5 mm × 5.8 m |
Our Certificate ASTM B280
| Copper Tube soft temper | 9/16" × 0.047" × 49.2 ft |
| 14mm*1.2mm*15m |
Our Certificate ASTM B280
| Copper Tube soft temper | 3/4" × 0.079" × 19.0 ft |
| 19.05mm*2mm*5.8m |
Our Certificate ASTM B280
| Copper Tube soft temper | 1-1/8" × 0.098" × 19.0 ft |
| 28.575mm*2.5mm*5.8m |
Our Certificate ASTM B280
| Copper Tube soft temper | 1-7/16" × 0.094" × 19.0 ft |
| 36mm*2.4mm*5.8m |
