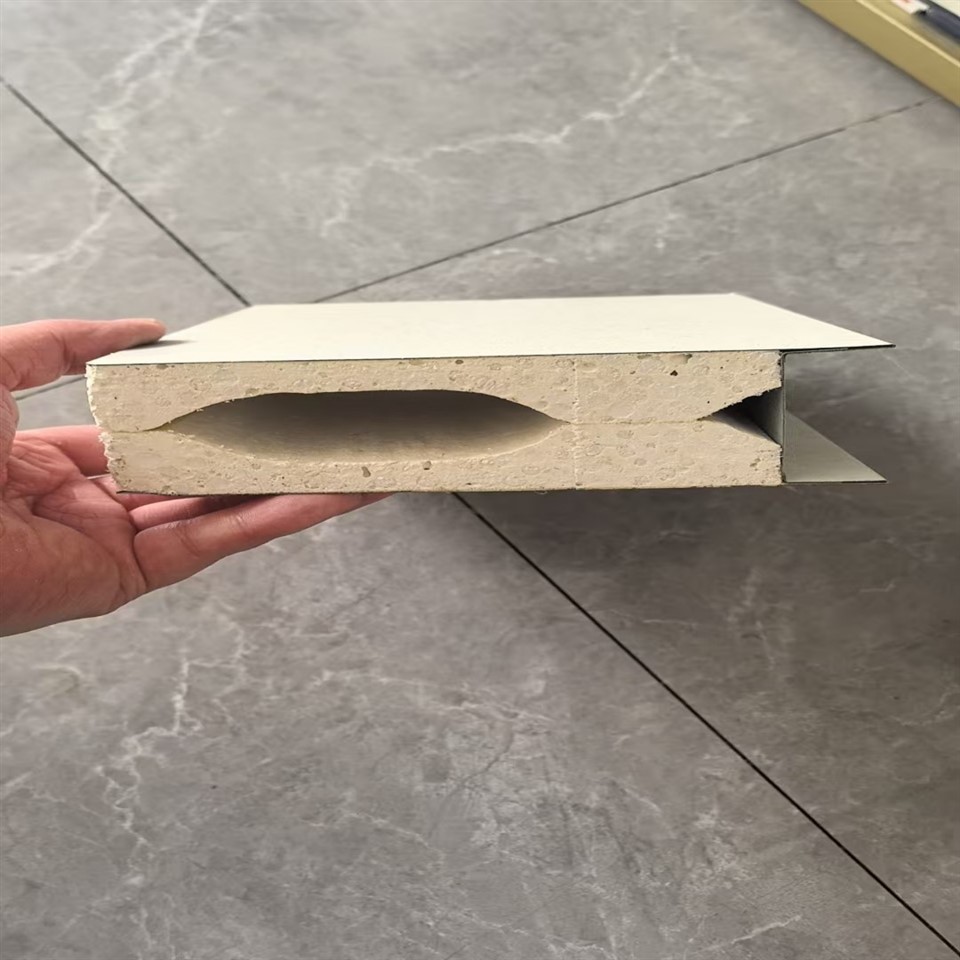

PIR Sandwich Panels (Polyisocyanurate Insulated Panels) represent a next-generation insulation solution that combines enhanced fire performance with ultra-high thermal efficiency. Compared to traditional PU and EPS panels, PIR offers a more stable chemical structure, improved fire behavior, and lower thermal conductivity. These panels are widely used in cold chain logistics, pharmaceutical clean rooms, and energy-efficient industrial buildings, where both safety and insulation performance are critical.
01
High Quality
02
Advanced Equipment
03
Professional Team
04
Custom Service
Product Specifications
| Item | Specification |
|---|---|
| Panel Type | Wall Panel / Roof Panel / Cold Room Panel |
| Core Material | PIR (Polyisocyanurate Foam) |
| Density | 38 – 45 kg/m³ |
| Thickness | 40 / 50 / 75 / 100 / 120 / 150 / 200 mm |
| Width | 950 mm / 1000 mm / 1120 mm |
| Length | Customized (up to 16m) |
| Steel Sheet Thickness | 0.4 – 0.8 mm |
| Surface Coating | PE / PVDF / HDP |
| Thermal Conductivity | ≤ 0.022 W/m·K |
| Fire Rating | B-s1,d0 / B1 (EN Standard) |
| Temperature Range | -50°C to +120°C |
| Joint System | Camlock / Hidden Joint |
Metric & Imperial Size Table
| Thickness (mm) | Thickness (inch) | Application Scenario |
|---|---|---|
| 40 mm | 1.6" | Clean rooms |
| 50 mm | 2.0" | Indoor partitions |
| 75 mm | 3.0" | Standard insulation |
| 100 mm | 4.0" | Cold storage (0°C) |
| 150 mm | 6.0" | Freezer (-18°C) |
| 200 mm | 8.0" | Deep freezer (-40°C) |
Core Advantages
❄️ Ultra-Low Thermal Conductivity
Up to 40% better insulation than EPS
Reduces refrigeration energy costs significantly
🔥 Enhanced Fire Behavior
Forms carbonized protective layer when exposed to fire
Lower smoke emission vs PU
🧊 Ideal for Cold Chain Systems
Maintains stable low temperatures
Prevents thermal bridging
🧩 Airtight Joint Technology
Camlock system ensures tight sealing
Minimizes cold air leakage
⚡ High Strength with Lightweight Core
Better rigidity than EPS
Easier handling than rock wool
Typical Applications
Cold storage & refrigerated warehouses
Food processing plants
Pharmaceutical clean rooms (GMP standard)
Data centers & temperature-controlled facilities
Logistics distribution centers
High-end prefab buildings
OEM & Engineering Customization
We provide project-based solutions:
Cold room system design (panel + door + accessories)
Camlock panel customization
Anti-corrosion coating for coastal environments
Stainless steel / aluminum surface for food-grade use
Fire rating upgrade solutions
Inspection & Quality Assurance
PIR foaming density & uniformity inspection
Thermal conductivity lab testing
Fire reaction classification (EN 13501-1)
Adhesion strength testing
Dimensional tolerance control
Third-party certification (SGS / TUV / BV)
Product Delivery Standards
Protective film + corner protection
Specialized packing for camlock panels
Cold storage project packaging solutions
Container optimization (reduce freight cost)
Full export documentation support
Why Choose PIR Instead of EPS or PU?
| Feature | PIR Panel | PU Panel | EPS Panel |
|---|---|---|---|
| Thermal Insulation | ⭐⭐⭐⭐⭐ | ⭐⭐⭐⭐ | ⭐⭐⭐ |
| Fire Performance | ⭐⭐⭐⭐ | ⭐⭐⭐ | ⭐⭐ |
| Energy Efficiency | ⭐⭐⭐⭐⭐ | ⭐⭐⭐⭐ | ⭐⭐⭐ |
| Cost | Medium-High | Medium | Low |
| Best Use | Cold storage / high-end | General insulation | Budget projects |
FAQ
1. What makes PIR better than PU panels?
PIR has a more stable polymer structure, offering better fire resistance and lower thermal conductivity than PU.
2. Is PIR suitable for cold storage projects?
Yes, PIR is one of the best materials for cold rooms, especially for temperatures below -18°C.
3. What joint systems are available?
We provide:
Camlock system (for cold rooms)
Hidden joint system (for buildings)
4. How does PIR perform in fire conditions?
PIR forms a protective char layer, slowing flame spread and reducing smoke.
5. Can PIR panels be used in food or pharmaceutical industries?
Yes, with stainless steel or coated surfaces, they meet hygiene standards.
6. What is the lifespan of PIR sandwich panels?
Typically 20–30 years, longer than EPS panels.
7. Do you provide complete cold room solutions?
Yes, we supply:
Insulated panels
Cold room doors
Accessories & installation guidance
