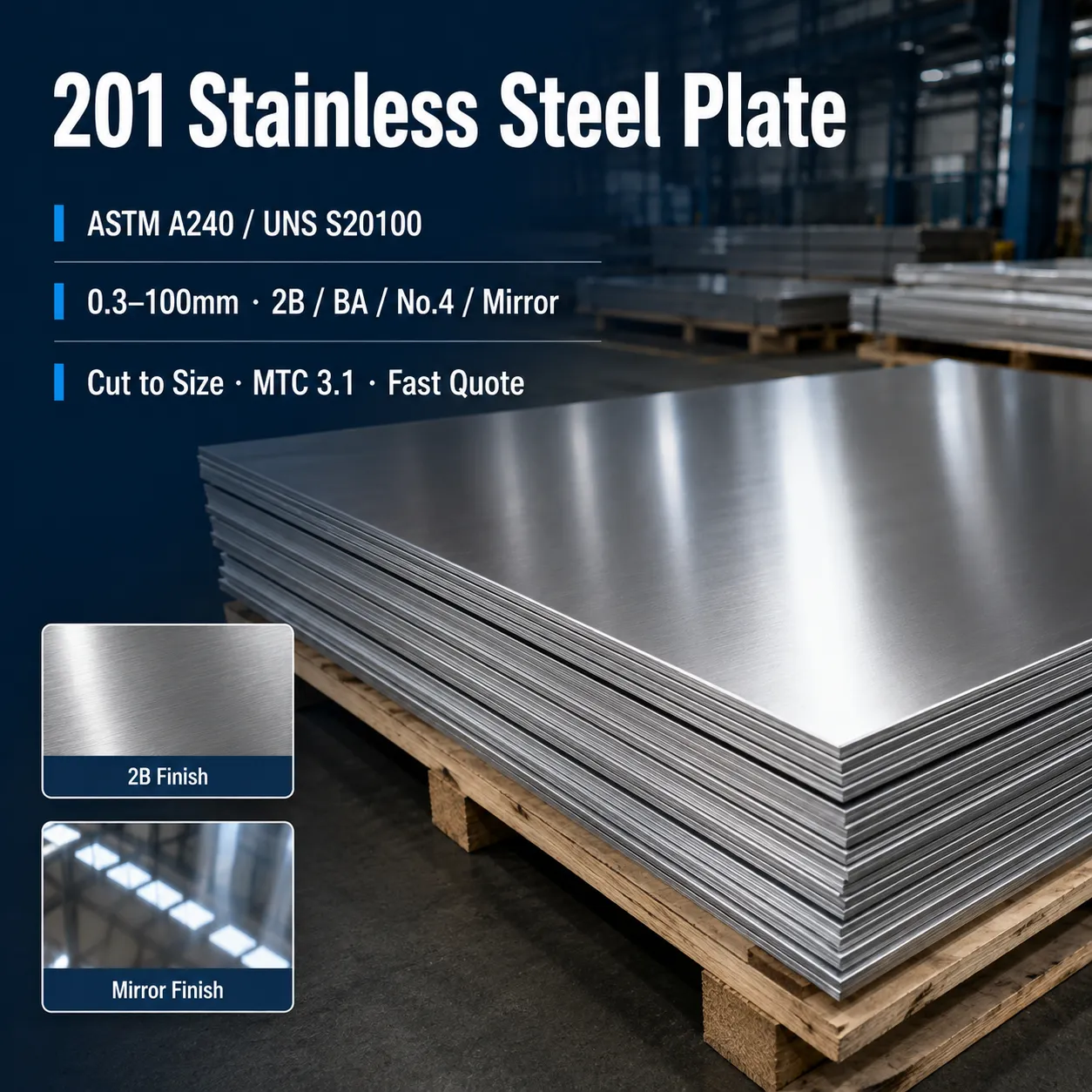

201 Stainless Steel Plate

201 stainless steel is a type of austenitic stainless steel. It is a low nickel, high-work hardening steel with good corrosion resistance and high temperature strength due to the addition of manganese. The presence of nickel in this alloy also gives it good ductility and toughness, especially at low temperatures.

Density: The density of this kind of stainless steel is 7.93 g/cm³.

Thermal conductivity: The thermal conductivity of it is 16.2 W/m-K at 100°C.

Electrical conductivity: The electrical conductivity of it is 2.50×10⁶ S/m.

Elastic modulus: The elastic modulus of it is 200 GPa.

Coefficient of thermal expansion: The coefficient of thermal expansion of it is 16.3×10⁻⁶/K at 20°C.

Specific heat capacity: The specific heat capacity of it is 0.50 J/g-K at 20°C.

Magnetic properties: This kind of stainless steel is non-magnetic in the annealed condition, but can become slightly magnetic after cold working.

These physical properties make 201 stainless steel suitable for a wide range of applications in various industries, including automotive, construction, and food processing.

Tensile Strength: The tensile strength of this kind of stainless steel is between 515-660 MPa (75-96 ksi).

Yield Strength: The yield strength of it is between 260-310 MPa (38-45 ksi).

Elongation: The elongation of it is between 40-50%.

Hardness: The hardness of it is between 95-110 HRB (Rockwell B scale) or 217-277 HV (Vickers scale).

Fatigue Strength: The fatigue strength of it is between 320-380 MPa (46-55 ksi).

Impact Strength: The impact strength of it is between 98-103 J (73-76 ft-lb) at room temperature.

Cold rolled 201 stainless steel plates are processed by cold rolling, which is a method of reducing the thickness of stainless steel sheets by passing them through rollers at room temperature. This process results in a smooth, polished surface finish and improved dimensional accuracy.

Hot rolled 201 stainless steel plates are produced using a hot rolling process. The steel is heated above its recrystallization temperature and then rolled to the desired thickness. Hot rolled sheets have a rougher surface finish compared to cold rolled sheets but have better mechanical properties.

Decorative 201 stainless steel plates are specially processed to have decorative patterns or finishes. These sheets are commonly used in interior decoration, such as wall panels, elevator panels, and furniture.

Embossed 201 stainless steel plates have a textured surface that is achieved through a process of embossing. The pattern is rolled onto the surface of the steel sheet, creating a raised design. These sheets are commonly used for decorative purposes, such as in kitchen appliances, wall panels, and decorative trim.

Colored 201 stainless steel plates are coated with a layer of colored material, such as titanium, to achieve a unique look. These sheets are commonly used in interior decoration, such as wall panels, elevator panels, and furniture.

Perforated 201 stainless steel plates have a pattern of small holes punched into the surface of the sheet. These sheets are commonly used in architectural and decorative applications, such as in building facades, sunshades, and screens.

Etched 201 stainless steel plates are produced by using an acid to selectively remove the surface of the steel sheet, creating a design or pattern. These sheets are commonly used in decorative applications, such as in elevator panels, wall panels, and signage.

201 stainless steel plate is available in a variety of sizes, thicknesses and finishes. The most common finishes are 2B (smooth), brushed and mirror. It is also available in various widths and lengths, and can be cut to size to meet specific customer requirements.

201 stainless steel is a versatile material with good corrosion resistance, formability, and mechanical properties. It is widely used in various industries and applications due to its cost-effectiveness and excellent performance in low to moderate corrosive environments.
