Xi'an Dongmeng Group Co., Ltd. is one of the most reliable manufacturers and suppliers of 304 Stainless Steel Sheet #4 Brushed Finish Supplier in China, also supports customized service. With abundant experience, we warmly welcome you to wholesale cheap products in stock here and get free sample from our factory. For price consultation, contact us.

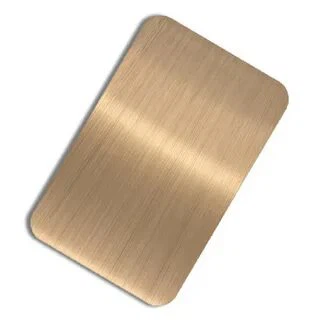

304 Stainless Steel Sheet with No.4 Brushed Finish
Dongmeng Group manufactures and supplies 304 stainless steel sheets with No.4 brushed finish for commercial kitchens, food-processing equipment, architectural panels, elevator interiors, appliance components and custom metal fabrication.
The surface has a uniform directional grain and a soft satin appearance. Compared with highly reflective BA or No.8 finishes, No.4 brushed stainless steel produces less glare and makes minor handling marks less noticeable.
What Is a No.4 Brushed Finish?
No.4 is a mechanically polished stainless steel finish characterized by a uniform, unidirectional grain and a low-to-moderate reflective satin appearance.
It is normally produced from cold-rolled stainless steel sheet using abrasive belts or brushes. The polishing process creates visible parallel lines while avoiding the highly reflective appearance of BA or No.8 mirror finishes.
Under European surface terminology, cold-rolled brushed or dull-polished finish 2J is generally comparable to ASTM No.4. However, the exact appearance may vary between production lines, abrasive materials and processing parameters. For appearance-critical projects, the finish should be approved using a physical reference sample.
Product Specifications
| Parameter | Available Specification |
| Stainless Steel Grade | 304 / 304L |
| UNS Designation | S30400 / S30403 |
| EN Designation | 1.4301 / 1.4307 |
| JIS Designation | SUS304 / SUS304L |
| Product Form | Sheet / Cut Panel / Fabricated Component |
| Standard Thickness | 0.3–2.0 mm |
| Standard Size | 1000 × 2000 mm |
| Imperial Size | 1219 × 2438 mm / 48 × 96 in |
| Long Sheet Size | 1219 × 3048 mm / 48 × 120 in |
| Custom Dimensions | Available after production review |
| Base Surface | Usually 2B cold-rolled sheet |
| Finished Surface | No.4 brushed or satin |
| Finished Sides | One side standard; two sides on request |
| Grain Direction | Along length or width |
| Protective Film | PE / PVC / Laser-compatible film |
| Edge Condition | Mill edge / slit edge / deburred edge |
| Standards | ASTM A240/A240M, ASTM A480/A480M, EN 10088-2, JIS G4305 |
| Processing | Shearing, laser cutting, V-grooving, bending, punching |
| Documentation | MTC EN 10204 3.1 and inspection report upon request |
Final dimensions, tolerance, finish, film type and processing feasibility should be confirmed before production.
304 Stainless Steel Chemical Composition
| Element | ASTM Maximum or Range |
| Carbon, C | ≤0.08% |
| Chromium, Cr | 18.00–20.00% |
| Nickel, Ni | 8.00–10.50% |
| Manganese, Mn | ≤2.00% |
| Silicon, Si | ≤0.75% |
| Phosphorus, P | ≤0.045% |
| Sulfur, S | ≤0.030% |
| Nitrogen, N | ≤0.10% |
| Iron, Fe | Balance |
ASTM A240/A240M covers chromium and chromium-nickel stainless steel plate, sheet and strip for pressure-vessel and general applications. ASTM A480/A480M provides general requirements for flat-rolled stainless steel products.
Mechanical Properties of Annealed 304 Sheet
| Property | ASTM Requirement |
| Tensile Strength | ≥515 MPa |
| 0.2% Yield Strength | ≥205 MPa |
| Elongation | ≥40% |
| Hardness | ≤92 HRB |
| Density | Approximately 7.9 g/cm³ |
Values apply to annealed material and may vary with thickness, testing direction, cold working and governing specification. Final acceptance must follow the applicable material standard and Mill Test Certificate.
How the No.4 Surface Is Produced
The typical production process includes:
Selecting qualified 304 cold-rolled base material
Checking thickness, flatness and initial surface condition
Mechanically polishing the surface with controlled abrasive belts
Producing a uniform grain in the specified direction
Removing polishing residue and cleaning the sheet
Checking grain consistency, shade and visible defects
Applying PE, PVC or laser-compatible protective film
Cutting, labeling and packing according to the order
The final appearance is influenced by the base sheet, abrasive grade, belt condition, pressure, line speed and polishing lubricant. Specifying only the abrasive grit does not always guarantee identical visual results.
No.4 vs Other Stainless Steel Finishes
| Finish | Appearance | Grain | Typical Applications |
| 2B | Smooth gray mill finish | Non-directional | Industrial fabrication, tanks, equipment |
| BA | Bright and reflective | Non-directional | Appliances and decorative components |
| No.4 | Soft satin and low glare | Uniform directional grain | Kitchens, panels, elevators and equipment |
| Hairline | Finer decorative linear texture | Long continuous grain | Architectural walls, doors and lift panels |
| No.8 Mirror | Highly reflective | No visible grain | Luxury interiors, signage and decorative panels |
No.4 and Hairline are not automatically interchangeable. Buyers should confirm the required grain length, visual sample and direction before ordering.
Surface Acceptance Requirements
For architectural panels or components installed next to each other, the following requirements should be stated in the purchase order:
Approved finish sample or swatch
Grain direction
One-side or two-side polishing
Required surface roughness, when applicable
Film type and film thickness
Sheet orientation
Maximum acceptable scratches or dents
Flatness and dimensional tolerance
Edge condition
Same production batch requirement
Surface-finish standards describe processing routes, but visual texture can still vary. Reference swatches are commonly used for final approval of special decorative finishes.
Typical Applications
304 No.4 brushed stainless steel sheet is commonly used for:
Commercial kitchen worktops
Restaurant equipment
Food-processing machinery
Kitchen backsplashes
Range hoods and appliance panels
Elevator cabins and doors
Interior wall cladding
Column covers
Handrails and decorative trim
Hospital and laboratory equipment
Cabinets and stainless steel furniture
Retail fixtures and display systems
Doors, partitions and access panels
Custom sheet-metal components
For food-contact applications, suitability depends not only on the alloy grade but also on fabrication quality, weld finishing, surface cleanliness, equipment design and applicable local regulations.
304 vs 304L vs 316L vs 430
| Grade | Main Characteristic | Recommended Use |
| 304 | Balanced corrosion resistance, formability and cost | General kitchens, equipment and interior panels |
| 304L | Lower carbon content for welded fabrication | Components with extensive welding |
| 316L | Better resistance to chloride-containing environments | Coastal, marine and high-humidity applications |
| 430 | Economical magnetic ferritic grade | Indoor appliance trim and mild environments |
Grade 304 is suitable for many indoor and mildly corrosive environments. For marine, swimming-pool or chloride-rich locations, the material grade and surface finish should be reviewed carefully.
Coarser brushed finishes can retain more contaminants than smoother finishes and are generally more suitable for interior applications. Finer satin finishes are often preferred for severe exterior environments.
Custom Fabrication Services
Dongmeng Group can supply full sheets, cut panels or finished components according to customer drawings.
Available services include:
Cut-to-size shearing
CNC laser cutting
Punching and perforating
V-grooving
Bending and folding
Corner rounding
Hole and slot processing
Edge deburring
Welding and grinding
Protective film application
Custom labeling and packaging
Fabrication Recommendations
Keep the protective film on the decorative surface during cutting, bending and installation whenever possible.
Use clean tooling dedicated to stainless steel to avoid carbon-steel contamination. When bending appearance-critical panels, confirm grain direction and bending radius before mass production.
Welding can discolor or remove the brushed appearance around the heat-affected zone. Visible welded areas may require grinding, re-brushing, pickling or passivation to restore a consistent finish.
Quality Inspection
Each order can be inspected according to the purchase specification and approved surface sample.
Our inspection process may include:
Material grade and heat-number verification
Mill Test Certificate review
Thickness, width and length measurement
Flatness and diagonal measurement
Grain direction inspection
Surface shade and texture comparison
Scratch, dent and edge inspection
Protective film adhesion inspection
Processed-part dimensional inspection
Packaging and shipping-mark verification
For projects using multiple adjacent panels, we recommend ordering all visible sheets from the same material and polishing batch.
Cleaning and Maintenance
Routine cleaning can normally be performed with warm water, mild detergent and a clean soft cloth.
Always wipe in the direction of the brushed grain. Rinse with clean water and dry the surface to reduce water marks.
Avoid:
Carbon-steel wool
Previously contaminated abrasive pads
Hard metal scrapers
Chloride-based cleaners
Concentrated bleach
Hydrochloric-acid cleaners
Cleaning across the grain
Industry cleaning guidance recommends working along the grain on brushed surfaces and avoiding carbon-steel tools and chloride-containing cleaners that may damage or contaminate the surface.
Packaging and Export Protection
Standard export packaging may include:
PE or PVC film on the finished surface
Paper interleaving
Waterproof wrapping
Edge and corner protection
Reinforced wooden pallets
Wooden cases for processed panels
Steel or plastic strapping
Custom labels and shipping marks
Film-laminated sheets should not be stored for extended periods under direct sunlight or high temperature, as aged adhesive may become difficult to remove.
Why Choose Dongmeng Group?
Dongmeng Group provides stainless steel material supply, surface finishing and drawing-based fabrication for international buyers.
Our group supply network includes five manufacturing centers, 18 production lines and 10 warehouses. Quality documentation shown by the company includes ISO 9001, SGS and RoHS-related certificates and reports.
Customers can receive:
Raw material and processing from one supplier
Finish samples before production
Grain-direction control
Batch appearance management
Cut-to-size and OEM fabrication
MTC and inspection documentation
Third-party inspection support
Protective export packaging
FOB, CFR, CIF and DDP delivery support
Request a Quote or Finish Sample
For an accurate quotation, please provide:
Grade: 304 or 304L
Thickness
Width and length
Required quantity
No.4 finish sample or reference image
Grain direction
One-side or two-side finish
Protective film requirement
Processing drawing
Dimensional tolerance
Application
Destination port or delivery address
Company: Dongmeng Group
Email: office@dongmjd.com
Phone / WhatsApp: +86 157 6921 4734
Website: www.cndmmetal.com
Request a No.4 Finish Sample and Quote
Frequently Asked Questions
Is No.4 finish the same as brushed stainless steel?
No.4 is one of the most common brushed stainless steel finishes. It has a visible directional grain and a satin, low-glare appearance.
Is No.4 the same as Hairline finish?
Not necessarily. Hairline normally has longer and finer continuous grain lines, while No.4 usually has a softer general-purpose brushed appearance. A physical sample should be approved when appearance is important.
Can the grain direction be customized?
Yes. The grain can run along the sheet length or width. Grain direction must be stated clearly for cut panels and multi-panel installations.
Is No.4 finish applied to one side or both sides?
One-side finishing is common. Two-side No.4 polishing can be supplied when specified before production.
Does No.4 stainless steel hide fingerprints?
The brushed texture makes fingerprints and minor handling marks less visible than on bright reflective finishes. An optional anti-fingerprint coating can provide additional protection.
Can 304 No.4 sheet be welded?
Yes. Grade 304 has good weldability, but welding changes the appearance around the joint. Visible areas may require re-grinding and re-brushing after welding.
Is 304 No.4 stainless steel suitable for outdoor use?
It can be used in suitable mild environments, but grade 316L and a finer surface may be more appropriate for coastal, chloride-rich or severe exterior locations.
Can you supply cut-to-size panels?
Yes. Dongmeng Group provides shearing, laser cutting, V-grooving, bending, punching and drawing-based fabrication.
What documents can be supplied?
Mill Test Certificates, dimensional inspection reports, Certificates of Conformity and third-party inspection documents can be arranged according to the order.
