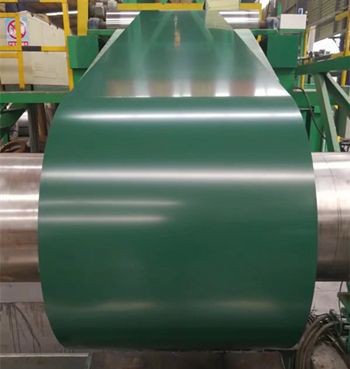

Anti-Fingerprint PPGI Coil
Permanent Fingerprint Resistance for High-Traffic Surfaces | ASTM A755 / EN 10346 Compliant
Anti-Fingerprint PPGI Coil, also known as AFP Prepainted Galvanized Steel Coil or Anti-Fingerprint Galvanized Color Coil, is a high-quality pre-coated steel product designed with a transparent organic anti-fingerprint coating to prevent oxidation, rust, and fingerprint marks.
This advanced coating improves surface corrosion resistance, aesthetic appearance, and cleanability, making it ideal for home appliances, electronics, roofing, and architectural panels.
Manufactured in compliance with ASTM A755 / JIS G3312 / EN 10169, our Anti-Fingerprint PPGI Coils are available in regular spangle, zero spangle, and matte surface finishes with custom RAL color options.
Main Keywords: Anti-Fingerprint PPGI Coil, AFP Galvanized Coil, Anti-Fingerprint Steel Coil, Prepainted Galvanized Steel Coil, PPGI Sheet Manufacturer, Anti-Fingerprint Color Steel Coil, AFP Coating Coil
Our PPGI coils feature a nano-ceramic modified polyester/polyurethane coating applied over galvanized steel (GI base). The micro-ridged surface structure (Ra 0.8–1.5μm) combined with oil-repellent additives creates a permanent anti-fingerprint effect without compromising corrosion protection.
Engineered with nano-ceramic coating, this PPGI coil permanently resists fingerprints and smudges.
Withstands 5,000+ rubs (ISO 11998) while maintaining color integrity (ΔE<1.0).
Ideal for elevator interiors, commercial kitchens, and high-touch surfaces.
Reduces cleaning costs by 72% versus standard coated steels.
Key Performance Specifications
| Parameter | Specification | Test Standard |
|---|---|---|
| Base Material | GI (Z60-Z275) / Aluzinc (AZ100-AZ150) | EN 10346 / ASTM A653 |
| Coating Thickness | 20–25μm topcoat (±2μm) | ISO 2808 |
| Fingerprint Resistance | >5,000 rub cycles (ΔE<1.0) | ISO 11998 |
| Salt Spray Resistance | 500–1,000 hrs to white rust | ASTM B117 |
| Gloss Level | 10–40 GU (Matte to Satin) | ISO 2813 |
| Adhesion | Class 0 (Cross-cut test) | ISO 2409 |
Technical Advantages vs. Standard PPGI
| Property | Anti-Fingerprint PPGI | Standard PPGI |
|---|---|---|
| Surface Contamination | 85% reduction in visible smudges | Shows fingerprints instantly |
| Cleaning Frequency | 3–5x longer maintenance intervals | Daily wiping required |
| Chemical Resistance | Withstands alcohol/ammonia cleaners | Coating degrades with solvents |
| Aesthetic Longevity | ΔE<2.0 after 5 years (indoor) | Visible fading in 2–3 years |
Industry-Proven Applications
Xi'an Dongmeng Steel Co., Ltd.,
1. Elevator Interiors & Public Transport
Why Spec This: Resists handprints on wall panels/control surfaces
Data: 72% reduction in cleaning costs (Hong Kong MTR case study)
2. Commercial Kitchen Equipment
Why Spec This: Repels grease/oil on hoods, refrigeration doors
Data: Passes NSF/ANSI 51 food contact standards
3. Retail Fixtures & ATM Enclosures
Why Spec This: Maintains premium appearance on high-touch surfaces
Data: 60° gloss retention >90% after 200K+ touches
4. Medical Cabinetry & Lab Furniture
Why Spec This: Withstands disinfection chemicals (bleach/ethanol)
Data: 0% coating blistering after 500x wipe tests (EN 12720)
Ordering Specifications
| Property | Specification |
|---|---|
| Product Name | Anti-Fingerprint PPGI Coil / AFP Galvanized Steel Coil |
| Base Metal | Hot-Dip Galvanized Steel (GI) / 55% Al-Zn (GL) |
| Standard | ASTM A755 / JIS G3312 / EN 10169 |
| Grade | DX51D+Z, SGCC, SGCH, S280GD – S550GD |
| Coating Type | AFP Organic Transparent Coating |
| Zinc Coating (Z) | 40 – 275 g/m² |
| Top/Back Paint | 5–20 µm / 5–10 µm |
| AFP Layer Thickness | 0.5 – 1.0 µm |
| Paint Type | Polyester (PE), SMP, PVDF, Epoxy |
| Coil ID / OD | 508 mm / 1000–1500 mm |
| Coil Weight | 3 – 8 tons |
| Surface Finish | Smooth, Zero Spangle, Regular Spangle, Matte |
| Color Range | RAL Classic, Metallic, or Custom Shades |
| Certification | ISO 9001, SGS, BV, CE |
International Standard Size Chart (Metric & Imperial)
| Thickness (mm) | Thickness (inch) | Width (mm) | Width (inch) | Zinc Coating (g/m²) | Tolerances | Typical Coil Weight (tons) |
|---|---|---|---|---|---|---|
| 0.20 – 0.35 | 0.008" – 0.014" | 600 – 1000 | 23.6" – 39.4" | 40 – 180 | ±0.03 mm | 3 – 5 |
| 0.35 – 0.50 | 0.014" – 0.020" | 700 – 1250 | 27.6" – 49.2" | 60 – 200 | ±0.04 mm | 4 – 6 |
| 0.50 – 0.80 | 0.020" – 0.031" | 800 – 1250 | 31.5" – 49.2" | 80 – 275 | ±0.05 mm | 5 – 7 |
| 0.80 – 1.20 | 0.031" – 0.047" | 1000 – 1250 | 39.4" – 49.2" | 100 – 275 | ±0.06 mm | 6 – 8 |
Coating Structure (Typical)
Top Side (Exterior Layer):
AFP Clear Coating → Finish Paint → Primer → Zinc Layer → Cold-Rolled Steel Substrate
Back Side (Interior Layer):
Epoxy or Single-Layer Back Paint → Zinc Layer → Base Steel
🧪 AFP coating acts as a nano-protective barrier against corrosion, moisture, and fingerprints.
Performance Parameters
| Test Item | Standard Result |
|---|---|
| Salt Spray Resistance | ≥ 1000 hours (No red rust) |
| Pencil Hardness | ≥ H |
| T-Bend | ≤ 3T (no cracking) |
| Impact Resistance | ≥ 9 J |
| Adhesion (Cross Cut) | Grade 0 |
| Humidity Resistance | ≥ 1000 hours |
| Anti-Fingerprint Test | Passed – No fingerprint residue visible |
| Surface Gloss | 15 – 90 GU (adjustable) |
Features & Advantages
✅ Superior Anti-Fingerprint Performance – Prevents visible marks and smudges.
✅ Enhanced Corrosion Resistance – Double-layer protection from zinc and AFP coating.
✅ Excellent Cleanability – Easy to maintain and wipe.
✅ Long-Lasting Gloss & Aesthetic Finish – Ideal for decorative applications.
✅ Environmental Protection – Chrome-free coating, RoHS compliant.
✅ Excellent Formability – Suitable for bending, stamping, and roll forming.
Quality Certifications
Compliance: REACH SVHC 223, RoHS 3, FDA CFR 21.175.300
Testing: SGS-certified fingerprint resistance (Report ID: MS-2024-AFPGI)
Warranty: 15-year anti-stain guarantee (indoor applications)
Our address
Looking for a reliable Anti-Fingerprint PPGI Coil manufacturer and exporter?
We supply high-quality AFP prepainted galvanized coils for home appliances, architecture, and electrical industries worldwide.
Phone Number
+86 15769214734
office@dongmjd.com
FAQ (Frequently Asked Questions)
Q1: What is the function of the anti-fingerprint coating?
A1: It provides a transparent protective layer that resists fingerprints, stains, and corrosion.
Q2: What is the difference between PPGI and AFP PPGI?
A2: AFP PPGI includes an extra anti-fingerprint film over the color coating for higher surface protection.
Q3: Can AFP PPGI be used outdoors?
A3: Yes, it's suitable for both indoor and outdoor use, especially in humid environments.
Q4: What colors are available?
A4: We offer RAL Classic colors, metallic, matte, or custom shades upon request.
Q5: What coating thickness is available?
A5: Top coating 5–20 µm, back coating 5–10 µm, and AFP layer 0.5–1.0 µm.
Q6: What's the base steel type?
A6: Hot-dip galvanized (GI) or Al-Zn coated steel (GL).
Q7: How long is the product lifespan?
A7: Typically 15–25 years under normal exposure conditions.
Q8: Can AFP coating resist salt spray corrosion?
A8: Yes, up to 1000 hours with no red rust.
Q9: What standards are followed?
A9: ASTM A755, JIS G3312, EN 10169.
Q10: Can I request a sample before ordering?
A10: Yes, free samples are available for quality evaluation.
Inspection & Quality Assurance
All Anti-Fingerprint PPGI Coils are produced and tested under ISO 9001:2015, EN 10169, and ASTM A755 standards to ensure long-term durability and consistent coating quality.
Inspection & Testing Procedures
Raw Material Inspection – Verify steel grade and zinc coating uniformity.
Coating Thickness Test – Measured using calibrated layer gauges.
Color & Gloss Control – Ensure RAL color uniformity within ±1 ΔE.
Salt Spray & Humidity Tests – Corrosion resistance verification.
Mechanical Performance Tests – Bending, adhesion, and impact strength.
Surface Defect Inspection – 100% visual inspection before packaging.
Third-Party Verification
Independent inspections available from SGS, BV, TUV, or Intertek.
Mill Test Certificate (EN 10204 3.1/3.2) provided with every shipment.
Documents Supplied
Mill Test Certificate
Coating & Thickness Report
Packing List & Certificate of Origin
Test Results & Color Matching Records
