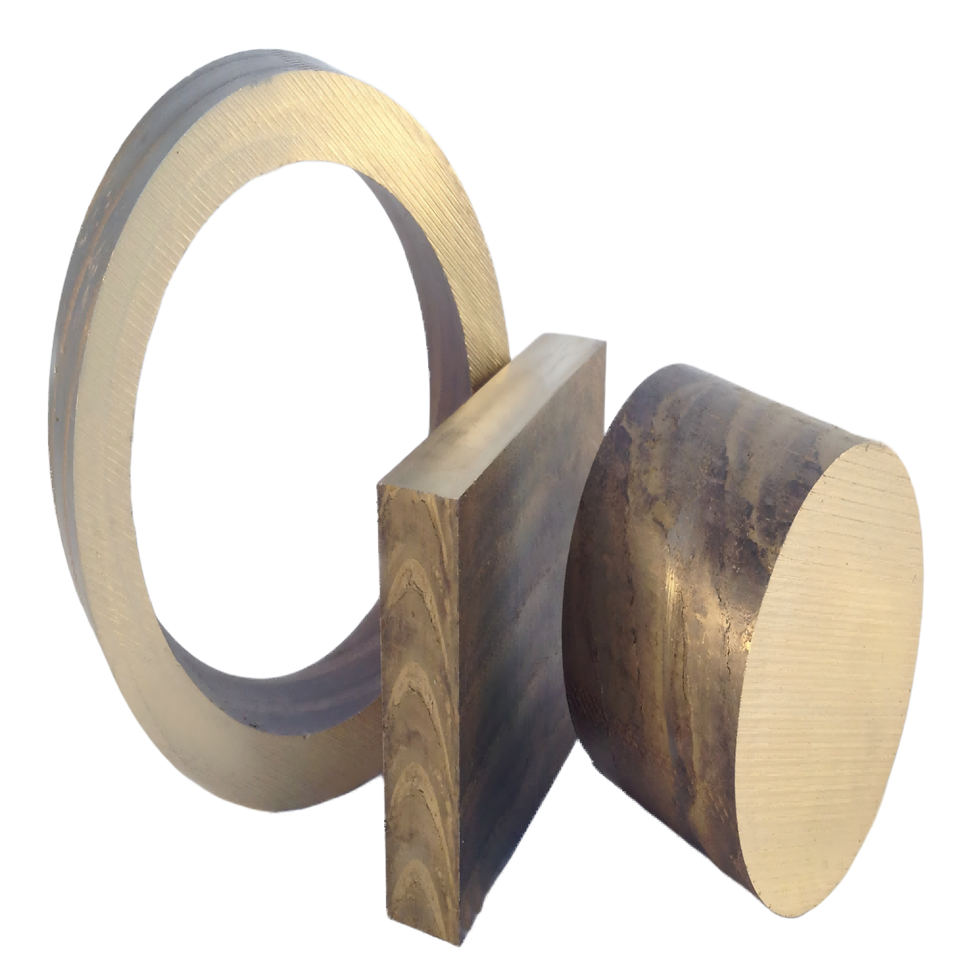

C61000 Aluminum Bronze

Xi'an Dongmeng Group Co., Ltd. is one of the most reliable manufacturers and suppliers of c61000 aluminum bronze in China, also supports customized service. With abundant experience, we warmly welcome you to wholesale cheap products in stock here and get free sample from our factory. For price consultation, contact us.

C61000 Aluminum Bronze – Wrought Copper-Aluminum Alloy for Industrial Components

Xi'an Dongmeng Group Co., Ltd. supplies C61000 aluminum bronze in selected wrought product forms for industrial manufacturers, component fabricators and international material distributors.

UNS C61000 is a copper-aluminum alloy containing 6.0–8.5% aluminum, with copper making up the balance. It combines moderate-to-high strength, useful ductility, wear resistance and corrosion resistance with good hot- and cold-forming characteristics.

C61000 is commonly considered for industrial pump components, shafts, fastening components, tie rods, wear surfaces and decorative products. Unlike some higher-strength nickel aluminum bronzes, C61000 is particularly relevant where a combination of formability, toughness and moderate strength is required.

For procurement projects, Dongmeng Group can assist with material selection, size matching, cutting, machining arrangements and inspection documentation according to the confirmed purchase specification.

UNS C61000 is distinguished by its controlled aluminum content and relatively low permissible iron content.

Chemical Composition - Weight %

 Reference: Copper Development Association UNS C61000 alloy data. Copper includes silver where applicable.

Aluminum is the principal alloying element responsible for strengthening the copper matrix and supporting protective oxide film formation. Its content also influences hardness, formability and electrical conductivity.

C61000 belongs to the wrought aluminum bronze family and should not be confused with higher-aluminum, iron-rich cast bronzes such as C95400. Selecting the correct alloy chemistry is particularly important when a component drawing specifies both mechanical performance and manufacturing method.

Mechanical properties depend on product form, thickness, degree of cold work and annealing condition. Therefore, a single minimum tensile strength should not be applied to every C61000 product.

Typical Mechanical Properties at 20°C

Typical CDA reference values, not guaranteed minimums. *Yield strength values use the CDA 0.5% extension-under-load method and must not be treated as Rp0.2 values. Confirm applicable test criteria before purchase.

Temper Selection Guidance

O60 – Soft Annealed: Recommended for applications requiring greater ductility, forming and bending.

H04 – Hard: Suitable when higher strength from cold working is beneficial, subject to size and manufacturing limits.

Custom Mechanical Requirements: If the component requires specific yield strength, hardness or elongation, provide the minimum acceptance criteria with the RFQ.

Approximate engineering reference data at ambient temperature unless otherwise indicated. Not intended as guaranteed supply specifications.

Dongmeng Group supports project-based sourcing of C61000 semi-finished materials, with product form, manufacturing route and dimensions reviewed before order confirmation.

Supply availability, size limitations and minimum order quantities must be confirmed. This table describes sourcing options rather than guaranteed stock inventory.

Custom Processing Services

Depending on product geometry, required tolerances and production feasibility, processing arrangements may include cutting to length, plate cutting, strip slitting, CNC turning, milling, drilling, deburring, surface finishing and export packaging.

For machined components, buyers should provide 2D/3D drawings, critical dimensions, surface roughness requirements and any applicable fit or geometric tolerances.

C61000 is a UNS material designation, not a guarantee of conformity with every general ASTM aluminum bronze product standard.

Material Designation & Standards Guide

Standards information should be checked against the agreed specification edition before order acceptance.

Important Procurement Note: When a purchase order states C61000 together with ASTM B169, ASTM B150 or ASTM B505, the grade/standard mismatch must be resolved with the buyer before material is released for production or shipment.

Corrosion Resistance

The aluminum-rich protective oxide film helps C61000 resist corrosion in various atmospheric and industrial environments. Suitability for seawater, chemicals or continuously immersed service must be evaluated against the actual operating conditions.

Strength and Ductility Balance

C61000 provides useful mechanical strength while retaining good ductility, particularly in annealed conditions. This makes it suitable for components requiring forming or moderate mechanical loading.

Wear Resistance

Its wear resistance makes it a candidate for industrial sliding surfaces, pump components and wear-resistant overlays. Actual tribological performance depends on contact pressure, lubrication, mating material and operating speed.

Fabrication Versatility

The alloy has good hot- and cold-working characteristics and can be joined by suitable arc-welding methods. Machinability is comparatively limited, so tooling and cutting conditions must be considered during production planning.

An experienced material supplier should help customers assess processing limitations instead of describing every fabrication operation as equally easy.

Machining Guidance

For machined C61000 components, particular attention should be given to tool selection, chip control, cutting fluid, dimensional stability and the required surface finish. Allowances for rough machining and final finishing should be established before production.

Welding Guidance

C61000 can be welded using suitable arc-welding processes. Welding consumables, joint preparation, heat input and inspection requirements should be selected according to the application. Welding should not be treated as equivalent to brazing.

Pump Components

Pump-related wearing components and mechanical parts where moderate strength, corrosion resistance and dimensional stability are important.

Industrial Fasteners

Bolts, nuts, tie rods and special fastening components requiring a combination of formability, durability and corrosion resistance.

Shafts & Mechanical Parts

Selected shafts, formed parts and medium-duty machine components, subject to design loads and wear requirements.

Wear-Resistant Components

Wearing surfaces, overlays and sliding components for which friction behavior and material compatibility have been evaluated.

Architectural & Decorative Parts

Decorative panels, formed fittings and metallic trim utilizing the alloy's warm golden color and workability.

Material Selection Boundary

For heavily loaded marine bearings, critical aerospace parts, high-strength gears or cast propeller components, C61000 must not be selected solely because it belongs to the aluminum bronze family. Higher-strength wrought or cast aluminum bronzes may be more appropriate, depending on design requirements.

Material selection is often influenced more by strength, production method and corrosion conditions than by the generic description "aluminum bronze."

Comparison based on respective alloy families and common engineering applications, not guaranteed superiority in every operating condition.

Selection Recommendation

Choose C61000 when its chemistry, wrought material characteristics and available tempers meet the project's requirements. If the application calls for greater strength, a different manufacturing route or specified marine service properties, compare alternative grades before purchasing.

For international industrial procurement, chemical conformity alone is insufficient. Dimensional accuracy, material condition and traceability are also important to avoid downstream machining and assembly problems.

Dongmeng Group can coordinate appropriate inspection requirements for C61000 aluminum bronze orders, subject to the agreed product specification.

Available Inspection Arrangements

Chemical composition verification using suitable analytical methods.

Tensile testing and hardness testing where specified and feasible.

Dimensional, straightness and surface inspection.

Visual inspection for surface defects and handling damage.

Material identification and lot traceability.

Additional nondestructive testing or third-party inspection where technically applicable and agreed.

Material Documentation

Mill test reports and inspection documents, including EN 10204 3.1 where available and contractually agreed, should identify the tested material, applicable grade, product condition and relevant inspection results.

The required document type must be confirmed before production. EN 10204 3.1 certification is not automatically available for every material form or supply route.

Xi'an Dongmeng Group Co., Ltd. focuses on supporting international B2B metal procurement, including material sourcing, customized dimensions, processing arrangements and export coordination.

C61000 aluminum bronze products can be prepared for export according to product form, surface condition, dimensions and shipment method.

Packaging options may include protective wrapping, separation between finished surfaces, moisture protection, reinforced wooden cases or pallets and identification labels. Heavy sections and precision-machined components require different packaging arrangements.

For purchase orders, customers should confirm the shipment destination, required Incoterms, labeling instructions, inspection release requirements and any special packaging needs.

Lead time, stock availability and minimum order quantity depend on the requested grade, product form, dimensions and quantity.

Q1. What is C61000 aluminum bronze?

C61000 is a wrought copper-aluminum alloy containing 6.0–8.5% aluminum. It offers useful strength, ductility and wear resistance for industrial and fabricated components.

Q2. What is the difference between C61000 and CuAl8?

CuAl8 is a copper-aluminum alloy designation commonly cross-referenced with C61000. Historical DIN 2.0920 is associated with CuAl8. Buyers should compare chemical limits, conditions and product specifications before treating materials as interchangeable.

Q3. What is the aluminum content of C61000?

The aluminum content is 6.0–8.5% by weight, with copper making up the balance and controlled limits on other elements.

Q4. What is the tensile strength of C61000?

It depends on temper and section size. CDA reference data includes approximately 359 MPa for annealed flat products and approximately 414–448 MPa for certain hard-condition flat products. These are typical reference values, not universal minimum requirements.

Q5. Can C61000 aluminum bronze be used in seawater?

C61000 offers corrosion resistance associated with aluminum bronze alloys. However, continuous seawater service must be assessed for flow velocity, crevice conditions, galvanic coupling, temperature and mechanical loading. It should not automatically replace a specified marine-grade alloy.

Q6. Is C61000 suitable for bearings and bushings?

It may be suitable for selected wear-related components, provided contact pressure, lubrication, sliding speed and shaft compatibility are appropriate. Higher-strength or cast bearing bronzes may be preferable for demanding applications.

Q7. What is the difference between C61000 and C63000?

C61000 is a copper-aluminum wrought alloy with 6.0–8.5% Al, while C63000 is a nickel-aluminum bronze containing additional nickel and iron and is generally selected for higher-strength applications. They should not be substituted without engineering approval.

Q8. Can C61000 be welded?

Yes. Suitable arc-welding processes can be used, but filler selection, heat input and the welding procedure must be evaluated. Brazing is not generally recommended in CDA fabrication guidance.

Q9. Is C61000 easy to machine?

Its machinability is relatively low compared with free-machining copper alloys. Production planning should account for tooling, cutting conditions, dimensional tolerances and required surface quality.

Q10. Can you supply C61000 plates and bars in custom sizes?

Project-based size inquiries can be reviewed. Customers should provide the product form, required dimensions, tolerances, quantity and material condition so availability and processing feasibility can be confirmed.

Q11. Is C61000 covered by ASTM B169 or ASTM B150?

The 2026 editions of ASTM B169/B169M and ASTM B150/B150M do not list C61000 within their specified grade scopes. Customers requiring an ASTM-certified product must agree on a technically applicable specification and material grade before ordering.

Q12. What information is needed to obtain a C61000 aluminum bronze quotation?

Please provide the grade, product form, dimensions, temper, order quantity, application, inspection documentation requirements and delivery destination. For custom parts, include technical drawings and critical tolerances.

Looking for a reliable supplier of C61000 aluminum bronze plate, sheet, strip, bar or customized components?

Contact Dongmeng Group with your material specification and purchasing requirements. Our team can review sourcing feasibility, processing options, inspection documentation and export arrangements.

To receive an accurate quotation, please specify:

Material: UNS C61000 / CuAl8

Product form and required dimensions

Temper or mechanical property requirements

Quantity and delivery destination

Required inspection certificates

Drawings or processing requirements, if applicable
